2PLB3LB-110
ActiveAltech Corporation

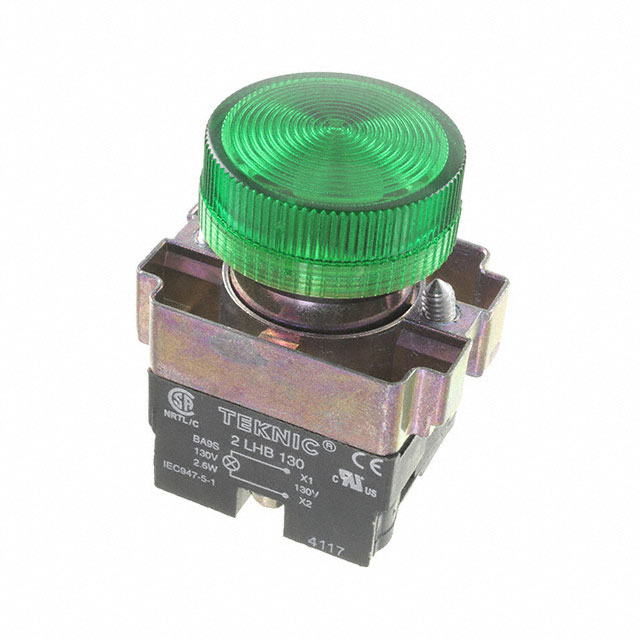

LED PANEL MOUNT INDICATOR, GREEN, 110 VAC, 22 MM, IP65, NEMA 4X, NEMA 12
Deep-Dive with AI
Search across all available documentation for this part.
2PLB3LB-110
ActiveAltech Corporation
LED PANEL MOUNT INDICATOR, GREEN, 110 VAC, 22 MM, IP65, NEMA 4X, NEMA 12
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2PLB3LB-110 | 2PLB3 Series |
|---|---|---|
| Current | 15 mA | 15 mA |
| Ingress Protection | IP65 | 12, NEMA 4X, IP65 |
| Lamp Color | Green | Green |
| Lens Size [diameter] | 28 mm | 28 mm |
| Panel Cutout Dimensions | - | 22 mm |
| Panel Cutout Dimensions | - | 0.87 in |
| Panel Cutout Shape | - | Round |
| Ratings | AC | AC/DC, DC, AC |
| Termination Style | Screw Terminal | Screw Terminal |
| Type | LED | LED, Incandescent |
| Voltage | 110 V | 12 - 230 V |
2PLB3 Series
PILOT LIGHT LED 22 MM GRN 48 V
| Part | Lamp Color | Panel Cutout Shape | Panel Cutout Dimensions | Panel Cutout Dimensions [custom] | Ratings | Lens Size [diameter] | Ingress Protection | Type | Voltage | Termination Style | Current |
|---|---|---|---|---|---|---|---|---|---|---|---|
Altech Corporation 2PLB3LB-048 | Green | Round | 22 mm | 0.87 in | AC/DC | 28 mm | 12, IP65, NEMA 4X | LED | 48 V | ||
Altech Corporation 2PLB3LB-024 | Green | AC/DC | 28 mm | IP65 | LED | 24 V | Screw Terminal | ||||
Altech Corporation 2PLB3-230 | Green | Round | 22 mm | 0.87 in | Incandescent | 230 V | |||||
Altech Corporation 2PLB3LB-230D | Green | Round | 22 mm | 0.87 in | DC | 28 mm | 12, IP65, NEMA 4X | LED | 230 V | ||
Altech Corporation 2PLB3LB-012 | Green | Round | 22 mm | 0.87 in | AC/DC | 28 mm | 12, IP65, NEMA 4X | LED | 12 V | ||
Altech Corporation 2PLB3LB-110 | Green | AC | 28 mm | IP65 | LED | 110 V | Screw Terminal | 15 mA | |||
Altech Corporation 2PLB3LB-230 | Green | Round | 22 mm | 0.87 in | AC | 28 mm | 12, IP65, NEMA 4X | LED | 230 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
2PLB3 Series
LED Panel Indicator Green 110V 15mA Screw Terminal
