HGG.2T.319.CLLPV

Active

LEMO

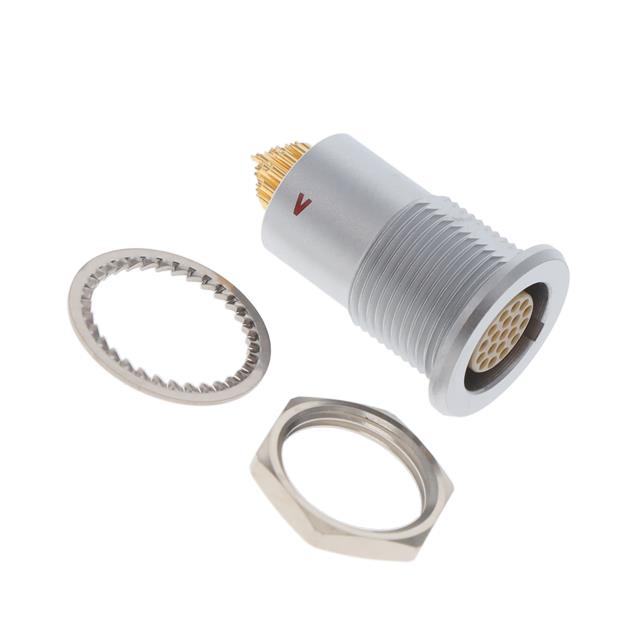

CONN RCPT FMALE 19P SOLDER CUP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 19P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	HGG.2T.319.CLLPV

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Features	Vacuumtight, Potted
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	19
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	319
Shielding	Shielded

CONN RCPT FMALE 19P SOLDER CUP

Part	Current Rating (Amps)	Shell Finish	Shielding	Contact Material	Mounting Feature	Fastening Type	Ingress Protection	Color	Contact Finish - Mating	Shell Material	Features	Orientation	Shell Size - Insert	Insert Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Material Flammability Rating	Number of Positions	Connector Type
LEMO HGG.2T.319.CLLPV	5 A	Chrome	Shielded	Bronze	Bulkhead - Rear Side Nut	Push-Pull	IP68 - Dust Tight, Waterproof	Silver	Gold	Brass	Potted, Vacuumtight	G	319	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	-20 C	80 C	Metal	UL94 V-0	19	Receptacle, Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 181.18

General part information

19 Position Circular Connector Receptacle, Female Sockets Solder Cup
