1241.3046.8

Active

SCHURTER Inc.

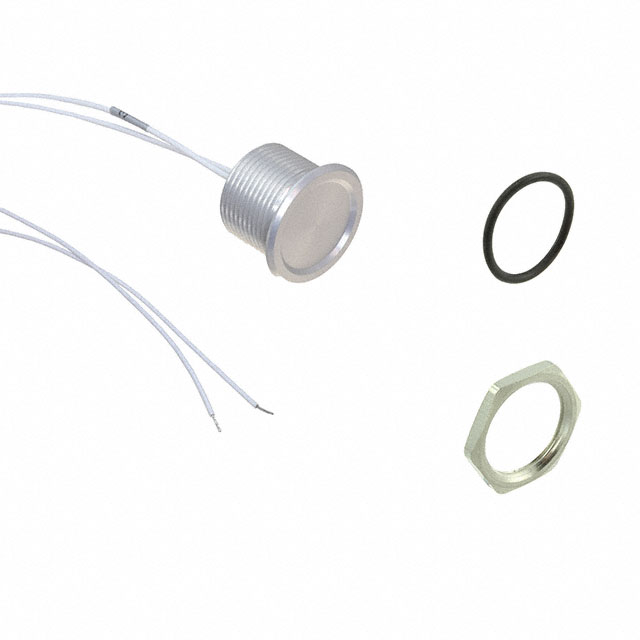

PUSHBUTTON SWITCHES PSE 16ANAF 00000000-IV-L

Search across all available documentation for this part.

Active

SCHURTER Inc.

PUSHBUTTON SWITCHES PSE 16ANAF 00000000-IV-L

Technical Specifications

Parameters and characteristics for this part

Specification	1241.3046.8

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Silver
Electrical Life	20000000 Cycles
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	16.2 mm
Switch Function	Off-Mom
Termination Style	Wire Leads
Type	Piezo
Voltage Rating - AC	32 V
Voltage Rating - DC	48 V

Pushbutton Switches PSE 16ANAF 00000000-IV-L

Part	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Actuator Type	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Mounting Type	Termination Style	Circuit	Actuator Marking	Ingress Protection	Color - Actuator/Cap	Type	Electrical Life
SCHURTER Inc. 1241.3046.8	-20 C	60 °C	Off-Mom	Button, Flush, Round	32 V	16.2 mm	48 V	Panel Mount, Front	Wire Leads	SPST-NO	No Marking	IP67 - Dust Tight, Waterproof	Silver	Piezo	20000000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switches PSE 16ANAF 00000000-IV-L
