Description
General part information
B384F120T30-EB

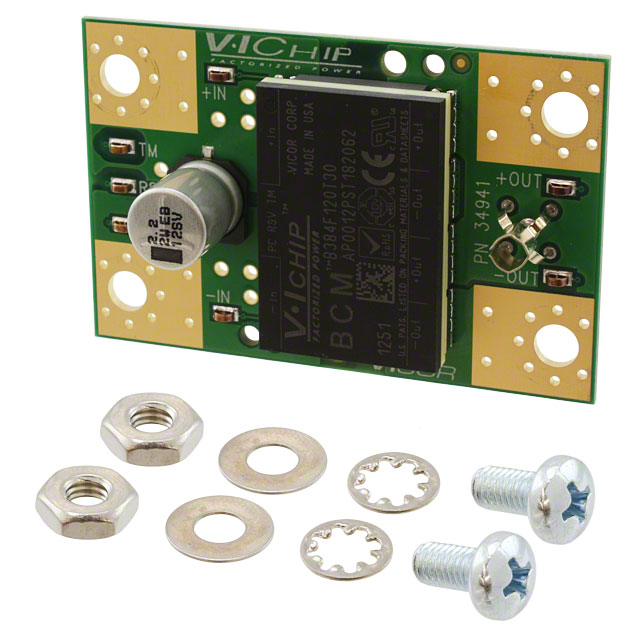

B384F120T30 VI Chip® BCM® DC/DC, Step Down 1, Isolated Outputs Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | B384F120T30-EB |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Current - Output | 25 A |
| Frequency - Switching | 3.4 MHz |
| Isolated Output Count | 1 |
| Main Purpose | DC/DC, Step Down |
| Output Type | Isolated |
| Power - Output | 300 W |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Total Output Count | 1 |
| Utilized IC / Part | B384F120T30 |
| Voltage - Input (Maximum) | 400 VAC |
| Voltage - Input (Minimum) | 360 V |
| Voltage - Output | 12 V |
