2-165655-1
ActiveTE Connectivity AMP Connectors
CONN RING CIRC 14-16AWG M5 CRIMP
2-165655-1
ActiveTE Connectivity AMP Connectors
CONN RING CIRC 14-16AWG M5 CRIMP
Description
General part information
2-165655-1

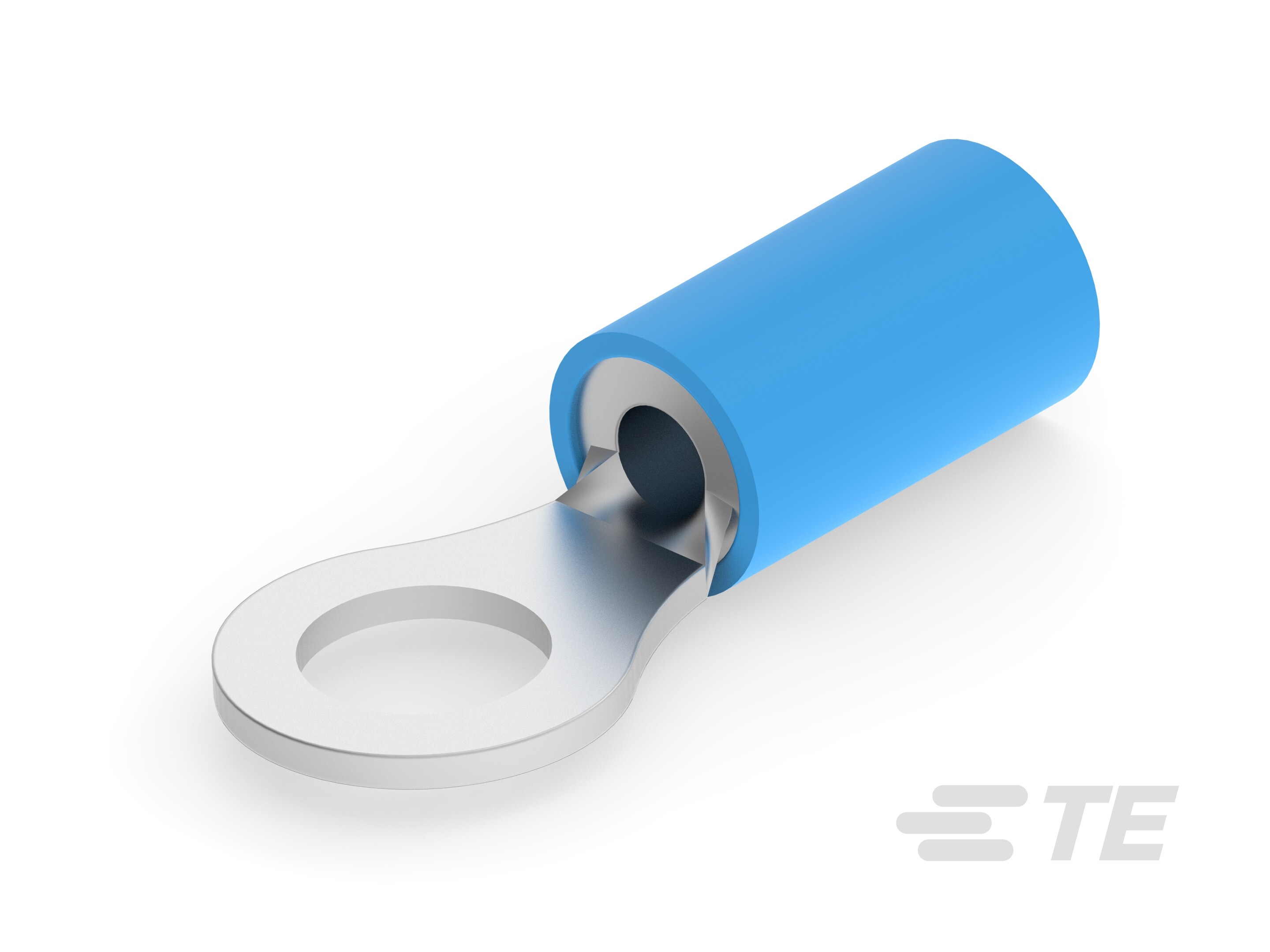

Closed Ring Tongue Terminal, 16 – 14 AWG, M5 Stud, 5.26 mm [.207 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Partially Insulated, PIDG
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-165655-1 |
|---|---|
| Color | Blue |
| Contact Finish | Tin |
| Contact Material | Copper |
| Insulation | Insulated |
| Length - Overall | 0.844 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | M5 Stud, M5 |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.031 in |
| Width - Outer Edges | 0.343 in |
| Wire Gauge (AWG) (Max) | 16 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
