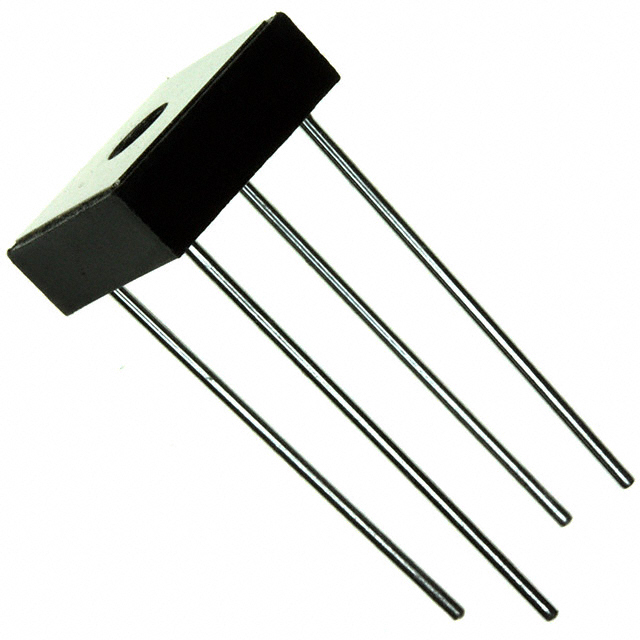

VJ448XM

Obsolete

Microsemi Corporation

BRIDGE RECT 1PHASE 400V 10A VJ

Search across all available documentation for this part.

Obsolete

Microsemi Corporation

BRIDGE RECT 1PHASE 400V 10A VJ

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Single Phase Standard 400 V Through Hole VJ

Technical documentation and resources

Specification	VJ448XM	VJ448 Series

Current - Average Rectified (Io)	10 A	10 A
Current - Reverse Leakage @ Vr	5 µA	5 µA
Diode Type	Single Phase	Single Phase
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	150 °C	150 - 175 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	4-Square, VJ	4-Square, VJ
Supplier Device Package	VJ	VJ
Technology	Standard	Standard
Voltage - Forward (Vf) (Max) @ If	1.3 V	1.3 V
Voltage - Peak Reverse (Max) [Max]	400 V	400 V

Part	Voltage - Forward (Vf) (Max) @ If	Operating Temperature [Min]	Operating Temperature [Max]	Diode Type	Mounting Type	Package / Case	Current - Average Rectified (Io)	Technology	Voltage - Peak Reverse (Max) [Max]	Current - Reverse Leakage @ Vr	Supplier Device Package
Microsemi Corporation VJ448M	1.3 V	-55 °C	175 ░C	Single Phase	Through Hole	4-Square, VJ	10 A	Standard	400 V	5 µA	VJ
Microsemi Corporation VJ448XM	1.3 V	-55 °C	150 °C	Single Phase	Through Hole	4-Square, VJ	10 A	Standard	400 V	5 µA	VJ
