W765FL-100-RMM-AGDP
ActiveNearson Inc.
LOW PROFILE 3G ANTENNA WITH FLYI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
W765FL-100-RMM-AGDP
ActiveNearson Inc.
LOW PROFILE 3G ANTENNA WITH FLYI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | W765FL-100-RMM-AGDP | W765FL Series |
|---|---|---|
| Antenna Type | Dome | Dome |
| Applications | General Purpose | General Purpose |
| Features | Cable - 2.54m | Cable - 2.54m, Cable, Cable - 254mm |
| Features | - | 3 m |
| Frequency (Center/Band) | 892 MHz, 1.85 GHz | 1.8 - 900 MHz |
| Frequency Range [Max] | 960 MHz, 1.99 GHz | 1.99 - 960 MHz |
| Frequency Range [Min] | 1.71 GHz, 824 MHz | 1.71 - 824 GHz |
| Gain | 2 dBic | 2 dBic |
| Height (Max) [Max] | 72 mm | 72 mm |
| Height (Max) [Max] [z] | 2.835 " | 2.835 " |
| Number of Bands | 2 | 2 - 4 |
| Termination | - | RP-SMA Male, MMCX Male |
| VSWR | 2 | 2 |
W765FL Series
LOW PROFILE 3G ANTENNA WITH FLYI
| Part | Antenna Type | Applications | Gain | Frequency (Center/Band) | Frequency Range [Min] | Frequency Range [Max] | VSWR | Height (Max) [Max] | Height (Max) [Max] [z] | Features | Number of Bands | Features | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Nearson Inc. W765FL-100-RMM-AGDP | Dome | General Purpose | 2 dBic | 1.85 GHz, 892 MHz | 1.71 GHz, 824 MHz | 1.99 GHz, 960 MHz | 2 | 72 mm | 2.835 " | Cable - 2.54m | 2 | ||
Nearson Inc. W765FL-120-AH-AGDP | Dome | 2 dBic | 1.8 GHz, 1.9 GHz, 850 MHz, 900 MHz | 1.71 GHz, 824 MHz | 1.99 GHz, 960 MHz | 2 | 72 mm | 2.835 " | Cable | 4 | 3 m | RP-SMA Male | |
Nearson Inc. W765FL-10-RMM-AGDP | Dome | 2 dBic | 1.8 GHz, 1.9 GHz, 850 MHz, 900 MHz | 1.71 GHz, 824 MHz | 1.99 GHz, 960 MHz | 2 | 72 mm | 2.835 " | Cable - 254mm | 4 | MMCX Male |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 40.90 | |
| 10 | $ 37.72 | |||
| 25 | $ 36.02 | |||
| 100 | $ 32.21 | |||
| 250 | $ 30.72 | |||
Description
General part information
W765FL Series

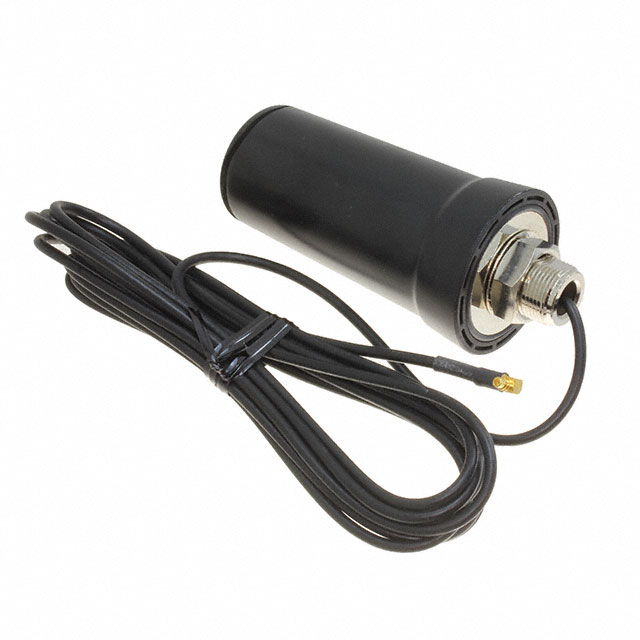

892MHz, 1.85GHz General Purpose Dome RF Antenna 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz 2dBi MMCX Panel Mount
