Description
General part information
FRU160-30F

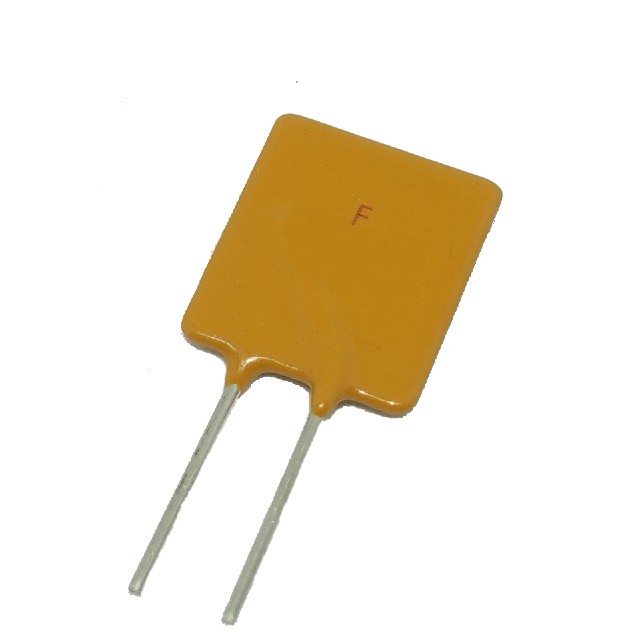

PTC Resettable Fuse 30V 1.6 A Ih Through Hole Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | FRU160-30F |
|---|---|
| Approval Agency | cUL, TUV, UL |
| Current - Hold (Ih) (Max) | 1.6 A |
| Current - Max | 100 A |
| Current - Trip (It) | 3.2 A |
| Height - Seated (Max) | 0.598 in |
| Lead Spacing | 0.201 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Disc, Radial |
| Resistance - Initial (Ri) (Min) | 30 mOhms |
| Resistance - Post Trip (R1) (Max) | 110 mOhms |
| Size / Dimension Length | 0.35 in |
| Size / Dimension Width | 0.118 in |
| Time to Trip | 8 s |
| Voltage - Max | 30 V |
