1440-60-0
ActivePomona Electronics

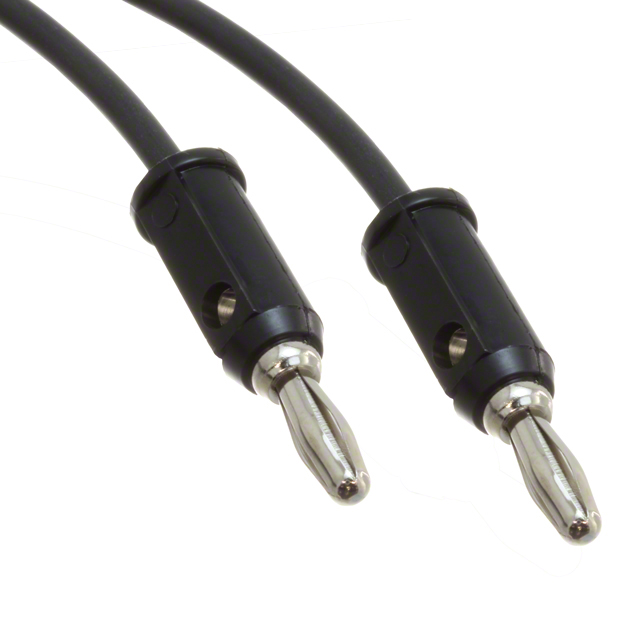

TEST LEAD BANANA TO BANANA 60"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1440-60-0
ActivePomona Electronics
TEST LEAD BANANA TO BANANA 60"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1440-60-0 |
|---|---|
| 1st Connector | Single, Stackable, Banana Plug |
| 2nd Connector | Banana Plug, Single, Stackable |
| Cable Length | 1524 mm |
| Cable Length | 5 ft |
| Configuration | Banana to Banana |
| Contents | 1 Lead, Black |
| Current Rating (Amps) | 15 A |
| Material - Insulation | Poly-Vinyl Chloride (PVC) |
| Stacking Method | Vertical Stacking (Both Connectors) |
| Type | Patch Cord |
| Voltage - Rated | 5 kV |
| Voltage - Rated | 5 kV |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.99 | |
| 25 | $ 12.74 | |||
Description
General part information
1440-60-0
60.0" (1524.00mm) Banana Plug, Single, Stackable To Banana Plug, Single, Stackable Patch Cord 5000VDC (5kV)
Documents
Technical documentation and resources
