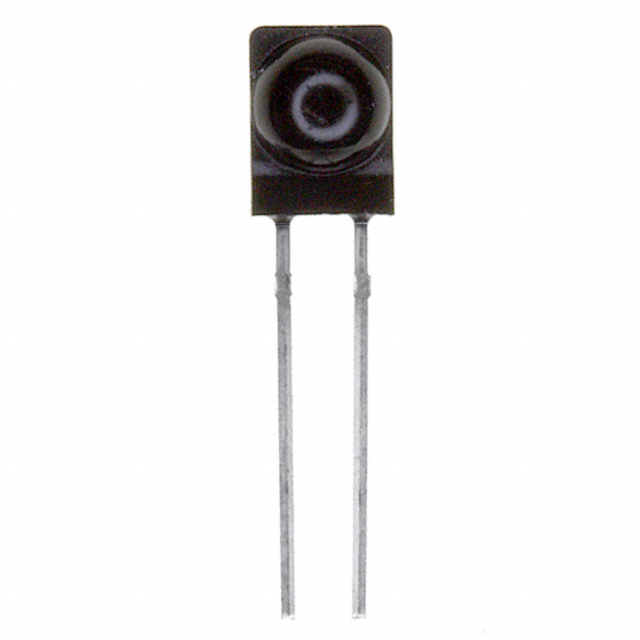

BPV23F

Active

Vishay Semiconductor Opto Division

SENSOR PHOTODIODE 950NM RADIAL

Search across all available documentation for this part.

Active

Vishay Semiconductor Opto Division

SENSOR PHOTODIODE 950NM RADIAL

Technical Specifications

Parameters and characteristics commom to parts in this series

SENSOR PHOTODIODE 950NM RADIAL

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Response Time	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current - Dark (Typ)	Active Area [custom]	Diode Type	Spectral Range [Max]	Spectral Range [Min]	Wavelength	Viewing Angle
Vishay Semiconductor Opto Division BPV23FL	60 V	Radial	70 ns	100 °C	-40 °C	Through Hole	2 nA	4.4 mm˛	PIN	1050 nm	870 nm	950 nm	120 °
Vishay Semiconductor Opto Division BPV23F	60 V	Radial, Side View		100 °C	-40 °C	Through Hole	2 nA	4.4 mm˛	PIN	1050 nm	870 nm	950 nm	120 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Photodiode 950nm 120° Radial, Side View
