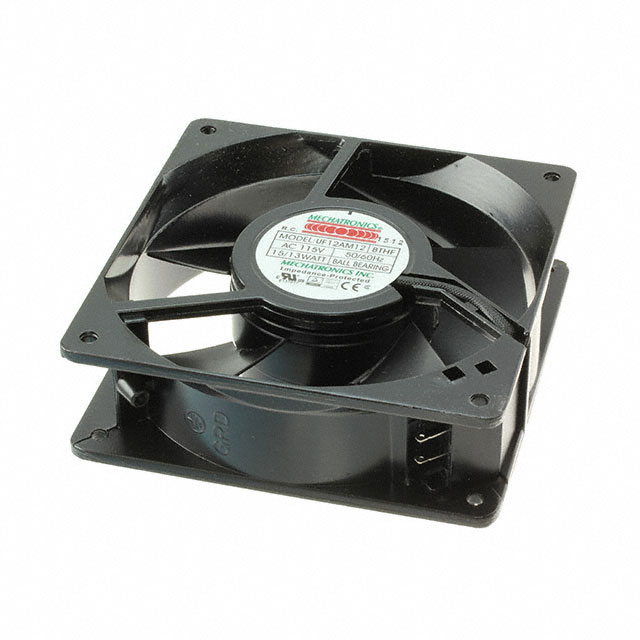

UF12AM12-BTHFR-B1
ActiveMechatronics Fan Group
FAN AXIAL 120X38MM 115VAC TACH
UF12AM12-BTHFR-B1
ActiveMechatronics Fan Group
FAN AXIAL 120X38MM 115VAC TACH
Description
General part information
UF12AM12-BTHFR-B1
Fan Tubeaxial 115VAC Square - 120mm L x 120mm H Ball 103.0 CFM (2.88m³/min) 2 Terminals
Technical Specifications
Parameters and characteristics for this part
| Specification | UF12AM12-BTHFR-B1 |
|---|---|
| Air Flow | 103 CFM |
| Approval Agency | cURus, TUV, CE |
| Bearing Type | Ball |
| Current Rating | 150 mA |
| Fan Type | Tubeaxial |
| Material - Blade | Metal |
| Material - Frame | Aluminum |
| Noise | 46 dB |
| Operating Temperature (Max) | 194 °F |
| Operating Temperature (Min) | -40 °F |
| Power (Watts) | 13 W |
| RPM | 3100 RPM |
| Size / Dimension Height | 120 mm |
| Size / Dimension Length | 120 mm |
| Size / Dimension Shape | Square |
| Static Pressure | 0.24 in H2O |
| Termination | 2 Terminals |
| Termination Count | 2 |
| Voltage - Rated | 115 V |
| Width | 38 mm |
