SCE2-B-76A06-07SN-001

Active

Amphenol

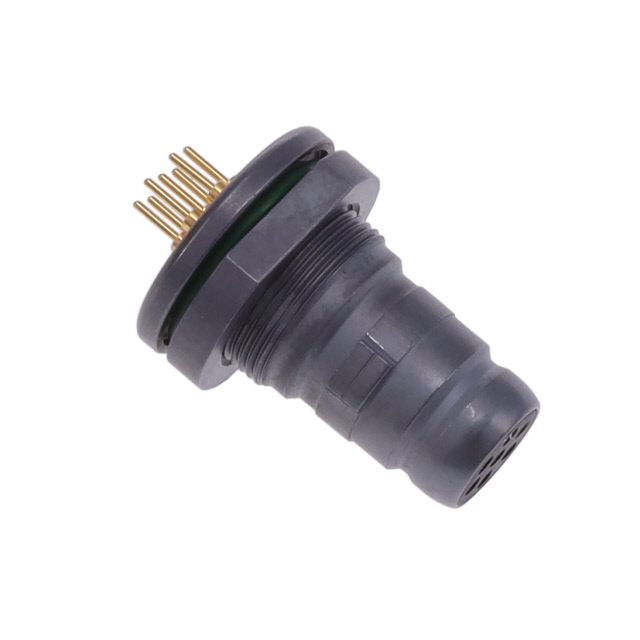

CONN PLUG FMALE 7POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SCE2-B-76A06-07SN-001

Active

Amphenol

CONN PLUG FMALE 7POS GOLD SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SCE2-B-76A06-07SN-001	SCE2-B Series

Backshell Material, Plating	-	Brass, Black Silver
Color	Black	Black
Connector Type	Female Sockets, Plug	Receptacle, Male Pins, Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	3 A, 1.5 A, 7.5 A	1.5 - 7.5 A
Fastening Type	Push-Pull	Push-Pull
Features	-	Coupling Nut, Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Free Hanging (In-Line), Through Hole, Panel Mount
Number of Positions	7	7 - 37
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	N	N
Primary Material	Metal	Metal
Shell Finish	Black	Black
Shell Material	Brass	Brass
Shell Size - Insert	-	10-37, 7-A10
Shell Size - Insert [Max]	7	7 - 26
Shell Size - Insert [Min]	6	6 - 9
Shielding	Unshielded	Unshielded
Termination	Solder	Solder
Voltage Rating	400 VAC	400 VAC

SCE2-B Series

CONN RCPT MALE 14P GOLD SLDR CUP

Part	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Positions	Primary Material	Ingress Protection	Current Rating (Amps)	Contact Material	Fastening Type	Features	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Color	Shell Finish	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Orientation	Backshell Material, Plating	Shielding	Voltage Rating	Contact Finish - Mating	Mounting Type	Mounting Feature	Termination	Shell Size - Insert
Amphenol SCE2-B-L1K07-14PN	Brass	-55 °C	125 °C	Male Pins, Receptacle	14	Metal	IP68 - Dust Tight, Waterproof	1.5 A, 3 A, 7.5 A	Copper Alloy	Push-Pull	Backshell, Coupling Nut	7	14	Black	Black	1 µm	39.4 µin	N	Black Silver, Brass	Unshielded	400 VAC	Gold	Free Hanging (In-Line)
Amphenol SCE2-B-76A10-37SN-001	Brass	-55 °C	125 °C	Female Sockets, Plug	37	Metal	IP68 - Dust Tight, Waterproof	1.5 A, 3 A, 7.5 A	Copper Alloy	Push-Pull				Black	Black	1 µm	39.4 µin	N		Unshielded	400 VAC	Gold	Panel Mount, Through Hole	Bulkhead - Front Side Nut	Solder	10-37
Amphenol SCE2-B-01K06-07PN	Brass	-55 °C	125 °C	Male Pins, Receptacle	7	Metal	IP68 - Dust Tight, Waterproof	1.5 A, 3 A, 7.5 A	Copper Alloy	Push-Pull	Backshell	6	7	Black	Black	1 µm	39.4 µin	N	Black Silver, Brass	Unshielded	400 VAC	Gold	Free Hanging (In-Line)
Amphenol SCE2-B-76A09-26SN-001	Brass	-55 °C	125 °C	Female Sockets, Plug	26	Metal	IP68 - Dust Tight, Waterproof	1.5 A, 3 A, 7.5 A	Copper Alloy	Push-Pull		9	26	Black	Black	1 µm	39.4 µin	N		Unshielded	400 VAC	Gold	Panel Mount, Through Hole	Bulkhead - Front Side Nut	Solder
Amphenol SCE2-B-L1K10-37PN	Brass	-55 °C	125 °C	Male Pins, Receptacle	37	Metal	IP68 - Dust Tight, Waterproof	1.5 A, 3 A, 7.5 A	Copper Alloy	Push-Pull	Backshell, Coupling Nut			Black	Black	1 µm	39.4 µin	N	Black Silver, Brass	Unshielded	400 VAC	Gold	Free Hanging (In-Line)			10-37
Amphenol SCE2-B-L1K06-07PN	Brass	-55 °C	125 °C	Male Pins, Receptacle	7	Metal	IP68 - Dust Tight, Waterproof	1.5 A, 3 A, 7.5 A	Copper Alloy	Push-Pull	Backshell, Coupling Nut	6	7	Black	Black	1 µm	39.4 µin	N	Black Silver, Brass	Unshielded	400 VAC	Gold	Free Hanging (In-Line)
Amphenol SCE2-B-76A07-10ASN-002	Brass	-55 °C	125 °C	Female Sockets, Plug	10	Metal	IP68 - Dust Tight, Waterproof	1.5 A, 3 A, 7.5 A	Copper Alloy	Push-Pull				Black	Black	1 µm	39.4 µin	N		Unshielded	400 VAC	Gold		Bulkhead - Front Side Nut		7-A10
Amphenol SCE2-B-06K07-14SN	Brass	-55 °C	125 °C	Female Sockets, Plug	14	Metal	IP68 - Dust Tight, Waterproof	1.5 A, 3 A, 7.5 A	Copper Alloy	Push-Pull	Backshell	7	14	Black	Black	1 µm	39.4 µin	N	Black Silver, Brass	Unshielded	400 VAC	Gold	Free Hanging (In-Line)
Amphenol SCE2-B-76A07-14SN-002	Brass	-55 °C	125 °C	Female Sockets, Plug	14	Metal	IP68 - Dust Tight, Waterproof	1.5 A, 3 A, 7.5 A	Copper Alloy	Push-Pull		7	14	Black	Black	1 µm	39.4 µin	N		Unshielded	400 VAC	Gold		Bulkhead - Front Side Nut
Amphenol SCE2-B-76A08-19SN-002	Brass	-55 °C	125 °C	Female Sockets, Plug	19	Metal	IP68 - Dust Tight, Waterproof	1.5 A, 3 A, 7.5 A	Copper Alloy	Push-Pull		8	19	Black	Black	1 µm	39.4 µin	N		Unshielded	400 VAC	Gold		Bulkhead - Front Side Nut
