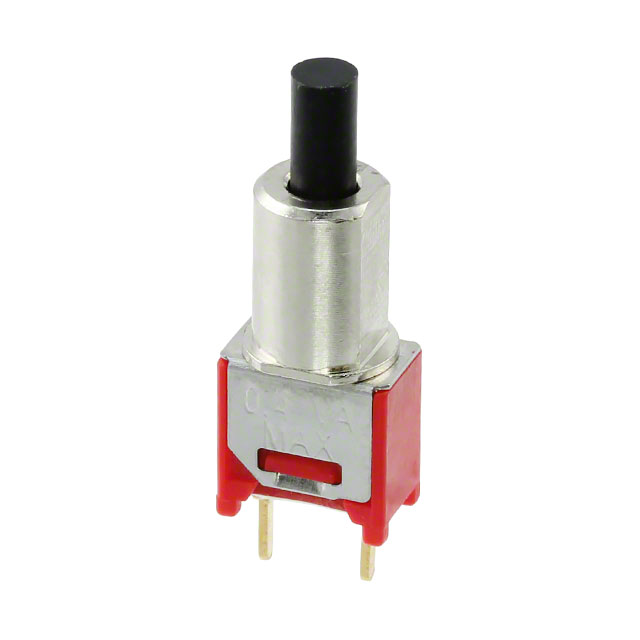

PMS9P1B08M2RE
ActiveTE Connectivity Raychem Cable Protection
SWITCH PUSH SPST-NO 0.4VA 20V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PMS9P1B08M2RE
ActiveTE Connectivity Raychem Cable Protection
SWITCH PUSH SPST-NO 0.4VA 20V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PMS9P1B08M2RE |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Plunger |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 0.4 VA |
| Features | Sealed |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | Off-Mom |
| Termination Style | PC Pin |
| Type | Standard |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.28 | |
| 10 | $ 3.70 | |||
| 25 | $ 3.49 | |||
| 50 | $ 3.34 | |||
| 100 | $ 3.19 | |||
| 300 | $ 2.97 | |||
| 500 | $ 2.88 | |||
| 1000 | $ 2.75 | |||
Description
General part information
PMS9P1 Series
Pushbutton Switch SPST-NO Standard Through Hole
