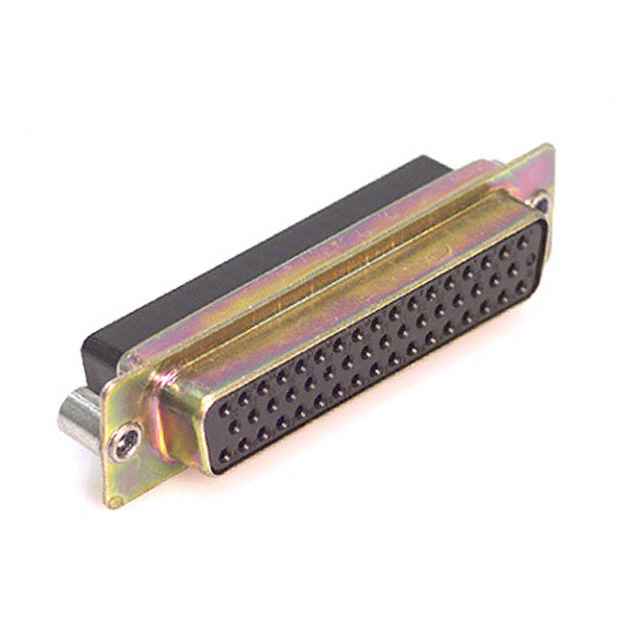

170-050-271L020
ObsoleteNorComp Inc.
CONN D-SUB HOUSING RCPT 50POS
170-050-271L020
ObsoleteNorComp Inc.
CONN D-SUB HOUSING RCPT 50POS
Description
General part information
170-050-271L020
Receptacle for Female Contacts Housing D-Sub Connector 50 Position
Technical Specifications
Parameters and characteristics for this part
| Specification | 170-050-271L020 |
|---|---|
| Color | Black |
| Connector Layout | D, DD |
| Connector Style | D-Sub |
| Connector Type | Receptacle for Female Contacts |
| Contact Type | Signal |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Finish | Yellow Chromate Plated |
| Flange Feature | Cable Side (4-40) |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 50 |
| Number of Rows | 3 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -50 °C |
| Shell Material | Steel |
| Shell Size | 5 |
