10-462-B36-1.6

Active

Coax Connectors Ltd

BNC END LAUNCH BULKHEAD JACK TRU

Search across all available documentation for this part.

Active

Coax Connectors Ltd

BNC END LAUNCH BULKHEAD JACK TRU

Technical Specifications

Parameters and characteristics for this part

Specification	10-462-B36-1.6

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	3 GHz
Housing Color	Silver
Impedance	75 Ohms
Ingress Protection	IP64 - Dust Tight, Water Resistant
Mating Cycles	250
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder

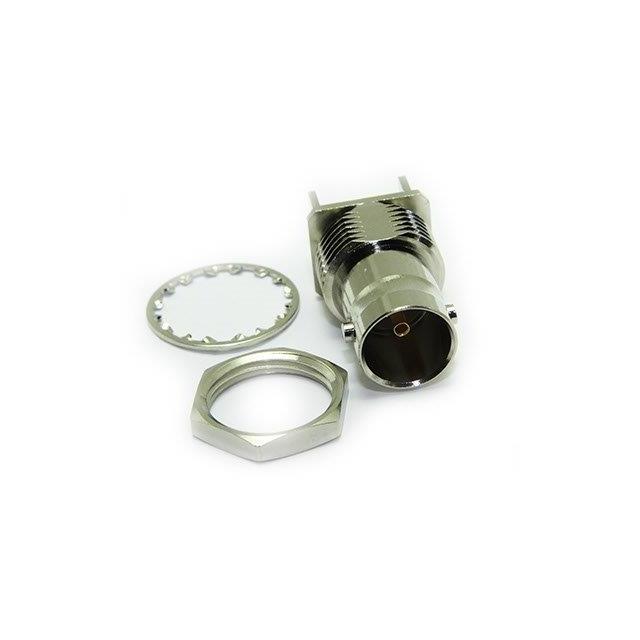

BNC END LAUNCH BULKHEAD JACK TRU

Part	Body Material	Mounting Type	Mounting Feature	Body Finish	Dielectric Material	Contact Termination	Connector Style	Housing Color	Connector Type	Frequency - Max [Max]	Impedance	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Number of Ports	Ingress Protection	Center Contact Plating	Center Contact Material	Shield Termination
Coax Connectors Ltd 10-462-B36-1.6	Brass	Panel Mount, Through Hole	Bulkhead - Front Side Nut	Nickel	Polytetrafluoroethylene (PTFE)	Solder	BNC	Silver	Female Socket, Jack	3 GHz	75 Ohms	Bayonet Lock	155 °C	-55 °C	250	1	IP64 - Dust Tight, Water Resistant	Gold	Phosphor Bronze	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BNC Connector Jack, Female Socket 75 Ohms Panel Mount, Through Hole Solder
