Description
General part information

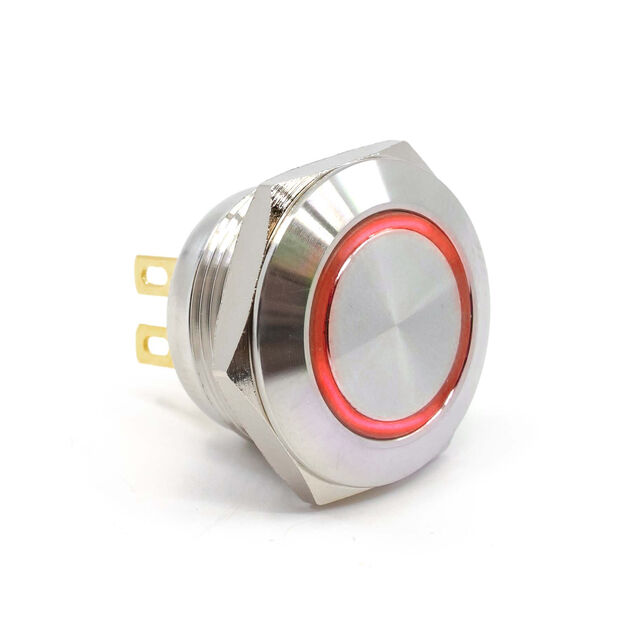

PVT4FS4SS315
Pushbutton Switch SPST-NO Anti-Vandal, Illuminated Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | PVT4FS4SS315 |
|---|---|
| Actuator Type | Round, Flush, Button |
| Circuit | SPST-NO |
| Color | Red |
| Color - Actuator/Cap | Silver |
| Current Rating | 50 mA |
| Electrical Life (Cycles) | 500000 |
| Illumination Type | LED |
| Illumination Voltage (Nominal) | 24 V |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 19 mm |
| Panel Cutout Shape | Circular |
| Switch Function | Off-Mom |
| Termination Style | Solder Lug |
| Type | Illuminated, Anti-Vandal |
| Voltage Rating - DC | 24 V |
