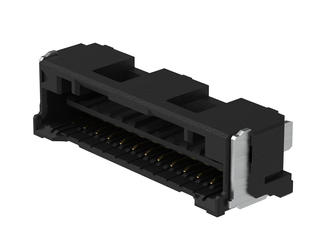

2132261371 - 1.50mm Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Single Row, Surface Mount, Right-Angle, 0.76µm Gold (Au) Plating, 13 Circuits, Black

2132261371

Active
Molex

1.50MM PITCH CLIK-MATE WIRE-TO-BOARD PCB RECEPTACLE, SINGLE ROW, SURFACE MOUNT, RIGHT-ANGLE, 0.76ΜM GOLD (AU) PLATING, 13 CIRCUITS, BLACK

Find alt
2132261371 - 1.50mm Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Single Row, Surface Mount, Right-Angle, 0.76µm Gold (Au) Plating, 13 Circuits, Black

2132261371

Active
Molex

1.50MM PITCH CLIK-MATE WIRE-TO-BOARD PCB RECEPTACLE, SINGLE ROW, SURFACE MOUNT, RIGHT-ANGLE, 0.76ΜM GOLD (AU) PLATING, 13 CIRCUITS, BLACK

Find alt

Description

General part information

213226 Series

Headers & Wire Housings 1.50MM CLIK-MATE REC 02P RA AU

Technical Specifications

Parameters and characteristics for this part

Specification2132261371
Connector TypeReceptacle
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thickness - Mating30 µin
Contact TypeForked
Current Rating0 A
Current RatingVaries by Wire Gauge
Fastening TypeLatch Holder
FeaturesSolder Retention
Insulation ColorBlack
Insulation Height0.252 in
Material Flammability RatingUL94 V-0
Mounting TypeRight Angle, Surface Mount
Number of Positions13
Number of Positions LoadedAll
Number of Rows1
Operating Temperature (Max)105 °C
Operating Temperature (Min)-40 °C
Pitch - Mating0.059 in
StyleCable/Wire, Board
TerminationSolder
Voltage Rating100 VAC
Voltage Rating (Type)AC, DC
