SM3543

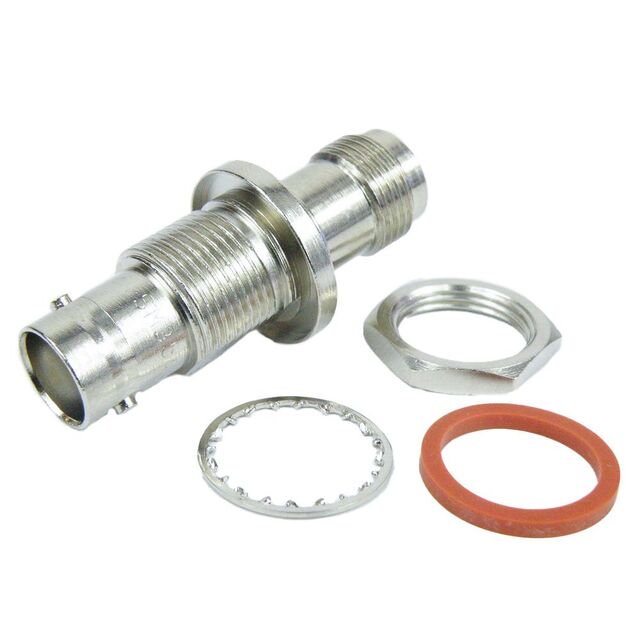

Adapter Coaxial Connector BNC Jack, Female Socket To TNC Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | SM3543 |
|---|---|
| Adapter Series | BNC to TNC |
| Adapter Type | Jack to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Gender | Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | BNC Jack, Female Socket |
| Convert To (Adapter End) | TNC Jack, Female Socket |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded, Bayonet Lock |
| Features | Hermetically Sealed |
| Frequency - Max | 4 GHz |
| Impedance | 50 Ohm |
| Mounting Feature | Bulkhead |
| Mounting Type | Panel Mount |
| Style | Straight |
