02115002-000

Obsolete

TE Connectivity Measurement Specialties

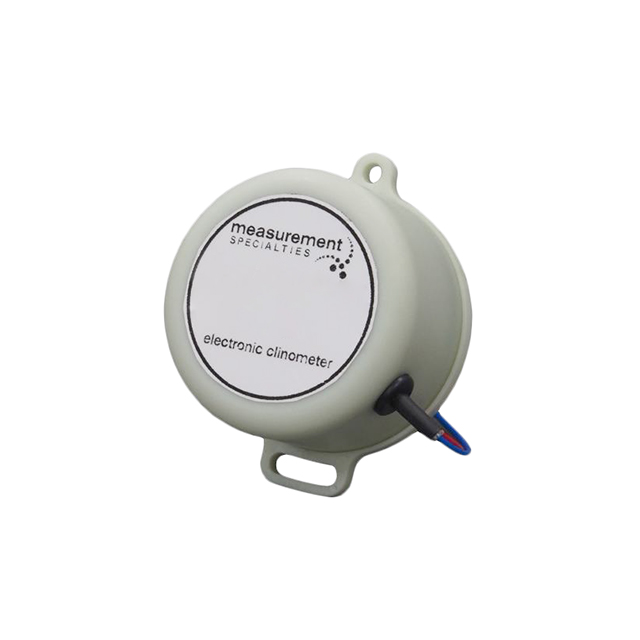

SENSOR INCLINOMETER 65DEG MODULE

Search across all available documentation for this part.

Obsolete

TE Connectivity Measurement Specialties

SENSOR INCLINOMETER 65DEG MODULE

Technical Specifications

Parameters and characteristics commom to parts in this series

SENSOR INCLINOMETER 65DEG MODULE

Part	Sensitivity	Package / Case	Interface	Axis	Voltage Rating [Max]	Voltage Rating [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Measuring Range [Max]	Measuring Range [Min]	Bandwidth
TE Connectivity Measurement Specialties 02114002-000	0.5 %	Module	Analog	X or Y	15 V	5 V	80 °C	-40 °C	65 °	-65 °	2 Hz
TE Connectivity Measurement Specialties 02115002-000	0.5 %	Module	Analog	X or Y	15 V	5 V	80 °C	-40 °C	65 °	-65 °	2 Hz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Sensor Inclinometer ±65° X or Y Axis 2Hz Bandwidth Module
