Y1001U2C203DQ

Active

LITTELFUSE

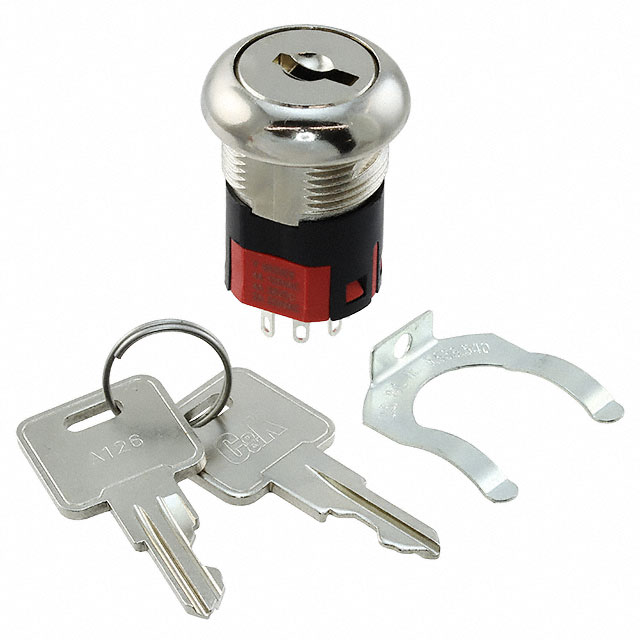

SWITCH KEYLOCK 3POS SP3T 4A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet y +1

Y1001U2C203DQ

Active

LITTELFUSE

SWITCH KEYLOCK 3POS SP3T 4A 125V

Deep-Dive with AI

DocumentsDatasheet y +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 13.08
		10	$ 11.73
		36	$ 11.35

Description

General part information

Y Series Series

The Y series 4, 5 & 6 tumbler switchlock from C&K is an anti-static switch, exceeding 20 KV DC static resistance. Typically used in cash registers, point-of-sale terminals and computers, the high-performing Y series is also available in momentary models and with wire leads and/or harnesses.

Documents

Technical documentation and resources

Datasheet

y

Datasheet

switchlock

Complete Product Line

Specification	Y1001U2C203DQ	Y Series Series

Actuator Type	Flat Key	Flat Key, Tubular Key
Angle of Throw	45 °	45 - 90 °
Circuit	SP3T	SPDT, DP3T, DPDT, SP3T, DP4T
Contact Finish	Silver	Silver, Gold
Contact Material	Copper	Copper
Contact Timing	Not Specified	Not Specified
Current Rating (Amps)	4 A	0.4 - 4 A
Depth Behind Flange	28.83 mm	21.8 - 35.84 mm
Depth Behind Flange	-	20.68 - 36.35 mm
Electrical Life	10000 Cycles	10000 Cycles
Features	-	Antistatic, Epoxy Sealed Terminals, Latch Pawl
Key Removable Positions	1 and 3	1 only, All, 1 and 3
Key Removable Positions	-	2
Mounting Type	-	Through Hole
Number of Positions	-	2 - 4
Operating Temperature	-	-30 ░C
Operating Temperature	-	85 °C
Panel Cutout Dimensions [diameter]	19.3 mm	19.3 mm
Switch Function	On-On-On	On-On, On-On-On, On-Mom, On-On-On-On
Termination Style	Solder Lug	Solder Lug, Wire Leads, PC Pin
Voltage Rating - AC	125 V	20 - 125 V
Voltage Rating - DC	28 V	20 - 28 V

Part	Contact Finish	Circuit	Number of Positions	Termination Style	Actuator Type	Angle of Throw	Contact Material	Switch Function	Panel Cutout Dimensions [diameter]	Depth Behind Flange	Voltage Rating - DC	Current Rating (Amps)	Contact Timing	Electrical Life	Key Removable Positions	Voltage Rating - AC	Features	Depth Behind Flange [z]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Key Removable Positions
LITTELFUSE Y101132C203NQ	Silver	SPDT	2	Solder Lug	Flat Key	90 °	Copper	On-On	19.3 mm	28.83 mm	28 V	4 A	Not Specified	10000 Cycles	1 only	125 V
LITTELFUSE Y1011U2C203NG	Gold	SPDT	2	Solder Lug	Flat Key	90 °	Copper	On-On	19.3 mm	28.83 mm	28 V	4 A	Not Specified	10000 Cycles	All	125 V
LITTELFUSE Y200822C203NQ	Silver	DP3T		Solder Lug	Flat Key	45 °	Copper	On-On-On	19.3 mm	28.83 mm	28 V	4 A	Not Specified	10000 Cycles	1 only	125 V
LITTELFUSE Y2011U2R203NQ	Silver	DPDT	2	Solder Lug	Flat Key	90 °	Copper	On-On	19.3 mm	35.84 mm	28 V	4 A	Not Specified	10000 Cycles	All	125 V	Antistatic
LITTELFUSE Y100822C2WCNG	Gold	SP3T		Wire Leads	Flat Key	45 °	Copper	On-On-On	19.3 mm		28 V	4 A	Not Specified	10000 Cycles	1 only	125 V		23.14 mm
LITTELFUSE Y201132C201NQ	Silver	DPDT	2	Solder Lug	Flat Key	90 °	Copper	On-On	19.3 mm	28.83 mm	28 V	4 A	Not Specified	10000 Cycles	1 only	125 V
LITTELFUSE Y108122A2WCNQ	Silver	SPDT	2	Wire Leads	Flat Key	45 °	Copper	On-Mom	19.3 mm		28 V	4 A	Not Specified	10000 Cycles	1 only	125 V		20.68 mm	-30 ░C	85 °C	Through Hole
LITTELFUSE Y2011C2C2WCNQ	Silver	DPDT	2	Wire Leads	Flat Key	90 °	Copper	On-On	19.3 mm		28 V	4 A	Not Specified	10000 Cycles		125 V		23.14 mm				2
LITTELFUSE Y2011C2C203NQ	Silver	DPDT	2	Solder Lug	Flat Key	90 °	Copper	On-On	19.3 mm	28.83 mm	28 V	4 A	Not Specified	10000 Cycles		125 V						2
LITTELFUSE Y2001U2C803NQ	Silver	DP3T		Solder Lug	Flat Key	45 °	Copper	On-On-On	19.3 mm	28.83 mm	28 V	4 A	Not Specified	10000 Cycles	1 and 3	125 V
