FPA28-S1PR-S16

Active

ConductRF

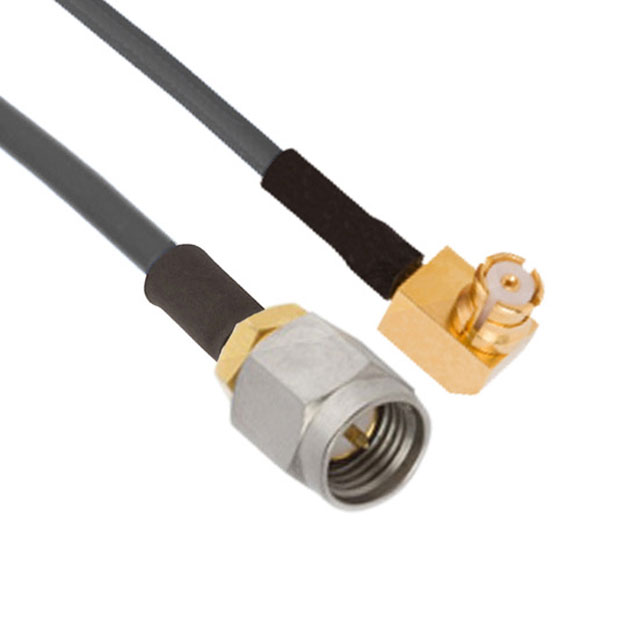

CBL ASSY SMA-SMP PLUG-JACK 16"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FPA28-S1PR-S16

Active

ConductRF

CBL ASSY SMA-SMP PLUG-JACK 16"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 89.49
		5	$ 84.23
		10	$ 79.55
		25	$ 71.59
		50	$ 65.08
		100	$ 62.25
		250	$ 59.66
		500	$ 57.28
		1000	$ 55.07

Description

General part information

FPA28 Series

Cable Assembly Coaxial SMA to SMP 2.18mm OD Coaxial Cable 16.00" (406.40mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FPA28-S1PR-S16	FPA28 Series

1st Connector	SMA Plug	SMP Jack, Right Angle, SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Contact Gender	Male	Female, Male
2nd Connector	SMP Jack, Right Angle	SMP Jack, Right Angle, SMP Jack
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Female	Female
Cable Type	2.18mm OD Coaxial Cable	2.18mm OD Coaxial Cable
Color	Black	Black
Connector Impedance	50 Ohms	50 Ohms
Features	Shielded	Shielded
Frequency - Max [Max]	27 GHz	27 GHz
Length	-	8 - 24 in
Length	-	203.2 - 609.6 mm
Length [x]	406.4 mm	406.4 mm
Length [x]	16 in	16 in
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Impedance	50 Ohms	50 Ohms
Style	SMA to SMP	SMP to SMP, SMA to SMP

FPA28 Series

CBL ASSY SMP JACK TO JACK 16"

Part	Connector Impedance	Style	Overall Impedance	Color	Frequency - Max [Max]	1st Connector Mounting Type	1st Connector	Features	2nd Connector Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	2nd Connector	Cable Type	1st Contact Gender	2nd Contact Gender	Length	Length
ConductRF FPA28-PRPR-S16	50 Ohms	SMP to SMP	50 Ohms	Black	27 GHz	Free Hanging (In-Line)	Right Angle, SMP Jack	Shielded	Free Hanging (In-Line)	-55 °C	125 °C	406.4 mm	16 in	SMP Jack, Right Angle	2.18mm OD Coaxial Cable	Female	Female
ConductRF FPA28-PFPF-S16	50 Ohms	SMP to SMP	50 Ohms	Black	27 GHz	Free Hanging (In-Line)	SMP Jack	Shielded	Free Hanging (In-Line)	-55 °C	125 °C	406.4 mm	16 in	SMP Jack	2.18mm OD Coaxial Cable	Female	Female
ConductRF FPA28-S1PR-S08	50 Ohms	SMA to SMP	50 Ohms	Black	27 GHz	Free Hanging (In-Line)	SMA Plug	Shielded	Free Hanging (In-Line)	-55 °C	125 °C			SMP Jack, Right Angle	2.18mm OD Coaxial Cable	Male	Female	8 in	203.2 mm
ConductRF FPA28-PFPF-S12	50 Ohms	SMP to SMP	50 Ohms	Black	27 GHz	Free Hanging (In-Line)	SMP Jack	Shielded	Free Hanging (In-Line)	-55 °C	125 °C			SMP Jack	2.18mm OD Coaxial Cable	Female	Female	12 "	304.8 mm
ConductRF FPA28-S1PR-S16	50 Ohms	SMA to SMP	50 Ohms	Black	27 GHz	Free Hanging (In-Line)	SMA Plug	Shielded	Free Hanging (In-Line)	-55 °C	125 °C	406.4 mm	16 in	SMP Jack, Right Angle	2.18mm OD Coaxial Cable	Male	Female
ConductRF FPA28-PFPR-S16	50 Ohms	SMP to SMP	50 Ohms	Black	27 GHz	Free Hanging (In-Line)	SMP Jack	Shielded	Free Hanging (In-Line)	-55 °C	125 °C	406.4 mm	16 in	SMP Jack, Right Angle	2.18mm OD Coaxial Cable	Female	Female
ConductRF FPA28-PRPR-S24	50 Ohms	SMP to SMP	50 Ohms	Black	27 GHz	Free Hanging (In-Line)	Right Angle, SMP Jack	Shielded	Free Hanging (In-Line)	-55 °C	125 °C			SMP Jack, Right Angle	2.18mm OD Coaxial Cable	Female	Female	24 "	609.6 mm
ConductRF FPA28-S1PF-S08	50 Ohms	SMA to SMP	50 Ohms	Black	27 GHz	Free Hanging (In-Line)	SMA Plug	Shielded	Free Hanging (In-Line)	-55 °C	125 °C			SMP Jack	2.18mm OD Coaxial Cable	Male	Female	8 in	203.2 mm
ConductRF FPA28-S1PF-S24	50 Ohms	SMA to SMP	50 Ohms	Black	27 GHz	Free Hanging (In-Line)	SMA Plug	Shielded	Free Hanging (In-Line)	-55 °C	125 °C			SMP Jack	2.18mm OD Coaxial Cable	Male	Female	24 "	609.6 mm
ConductRF FPA28-PFPF-S08	50 Ohms	SMP to SMP	50 Ohms	Black	27 GHz	Free Hanging (In-Line)	SMP Jack	Shielded	Free Hanging (In-Line)	-55 °C	125 °C			SMP Jack	2.18mm OD Coaxial Cable	Female	Female	8 in	203.2 mm
