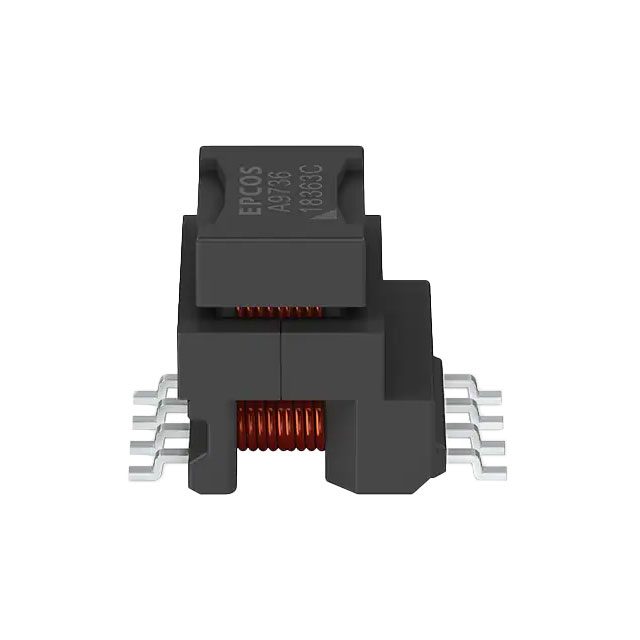

B78308A2462A003
ActiveEPCOS - TDK Electronics
XFMR FLYBACK DC/DC CONV 4.1UH SM
B78308A2462A003
ActiveEPCOS - TDK Electronics
XFMR FLYBACK DC/DC CONV 4.1UH SM
Description
General part information
B78308A2462A003
Flyback Converters For For DC/DC Converters SMPS Transformer 3000Vrms Isolation 100 ~ 400kHz Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | B78308A2462A003 |
|---|---|
| Applications | Flyback Converters |
| Footprint Length | 0.622 in |
| Footprint Width | 0.508 in |
| Frequency (Max) | 400 kHz |
| Frequency (Min) | 100 kHz, 100, 100 Hz |
| Height - Seated (Max) | 0.449 in |
| Inductance | 4.1 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -40 °C |
| Size / Dimension Length | 0.508 in |
| Size / Dimension Width | 0.433 in |
| Type | For DC/DC Converters |
| Voltage - Isolation | 3 kV |
