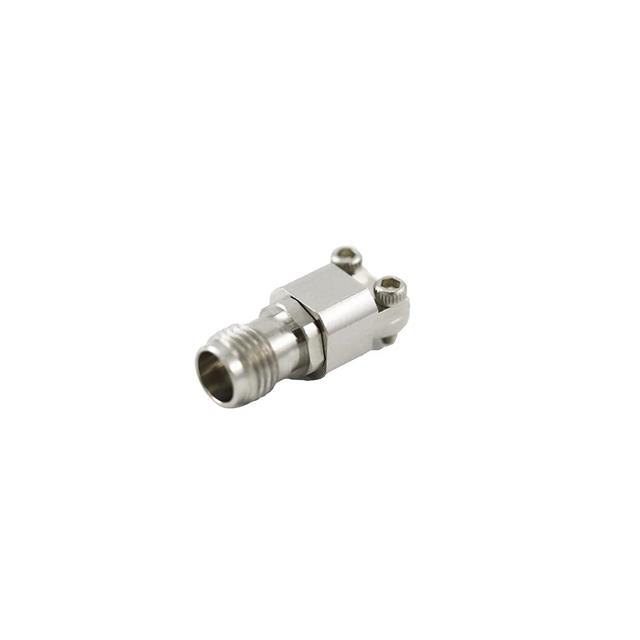

NE01FS001

Active

WITHWAVE CO LTD

END LAUNCH 1.85 MM CONNECTOR

Search across all available documentation for this part.

Active

WITHWAVE CO LTD

END LAUNCH 1.85 MM CONNECTOR

Technical Specifications

Parameters and characteristics for this part

END LAUNCH 1.85 MM CONNECTOR

Part	Connector Style	Housing Color	Center Contact Material	Features	Shield Termination	Mounting Type	Frequency - Max [Max]	Contact Termination	Impedance	Connector Type	Number of Ports
WITHWAVE CO LTD NE01FS001	1.85 mm	Silver	Beryllium Copper	Mounting Hardware	Screw	Board Edge, End Launch	67 GHz	Compression	50 Ohms	Female Socket, Jack	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.85mm Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Compression
