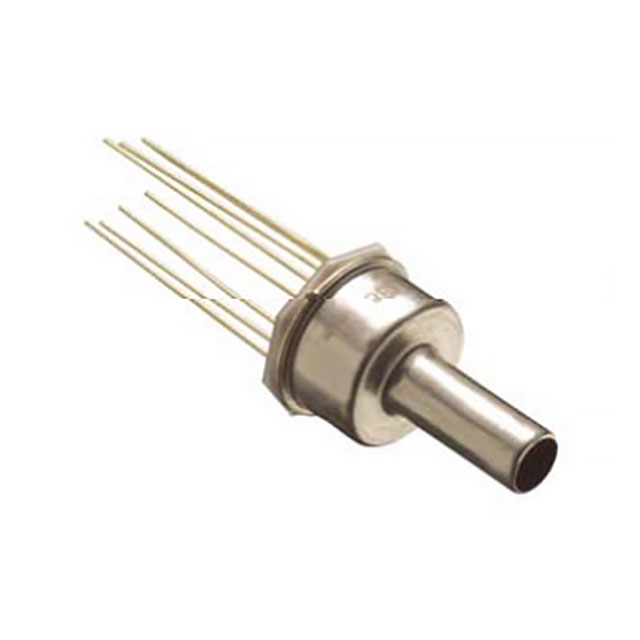

13A-100G
ObsoleteTE Connectivity Measurement Specialties
SENSOR 100PSIG 0.19" 0.1V TO8
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
13A-100G
ObsoleteTE Connectivity Measurement Specialties
SENSOR 100PSIG 0.19" 0.1V TO8
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 13A-100G |
|---|---|
| Accuracy | 0.1 % |
| Applications | Board Mount |
| Features | Temperature Compensated |
| Maximum Pressure [Max] | 2068.43 kPa |
| Maximum Pressure [Max] | 300 PSI |
| Mounting Type | Through Hole |
| Operating Pressure | 689.48 kPa |
| Operating Pressure | 100 PSI |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output [Max] | 100 mV |
| Output [Min] | 0 mV |
| Output Type | Wheatstone Bridge |
| Package / Case | TO-8 Style |
| Package / Case | 12 |
| Port Size | 4.826 mm, 4.78 mm |
| Port Style | Barbless |
| Pressure Type | Vented Gauge |
| Supplier Device Package | TO-8 |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 138 | $ 59.35 | |
Description
General part information
13A-100G
Pressure Sensor 100PSI (689.48kPa) Vented Gauge Male - 0.19" (4.78mm) Tube 0 mV ~ 100 mV TO-8 Style, 12 Leads
