HOA0709-001
ObsoleteHoneywell Sensing and Productivity Solutions
SENSOR OPTO DARL 3.81MM REFL
HOA0709-001
ObsoleteHoneywell Sensing and Productivity Solutions
SENSOR OPTO DARL 3.81MM REFL
Description
General part information
HOA0709-001

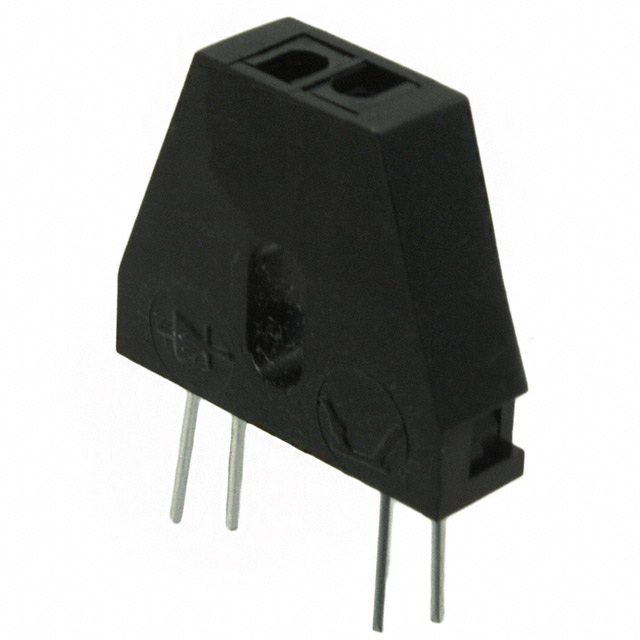

Reflective Optical Sensor 0.15" (3.8mm) Module, Pin Contacts
Technical Specifications
Parameters and characteristics for this part
| Specification | HOA0709-001 |
|---|---|
| Current - Collector (Ic) (Max) | 40 mA |
| Current - DC Forward (If) (Max) | 50 mA |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Photodarlington |
| Package / Case | Pin Contacts, Module |
| Response Time | 75 µs |
| Sensing Distance | 0.15 " |
| Sensing Method | Reflective |
| Voltage - Collector Emitter Breakdown (Max) | 15 V |
