L2C2-27801211E1900
ObsoleteLumileds

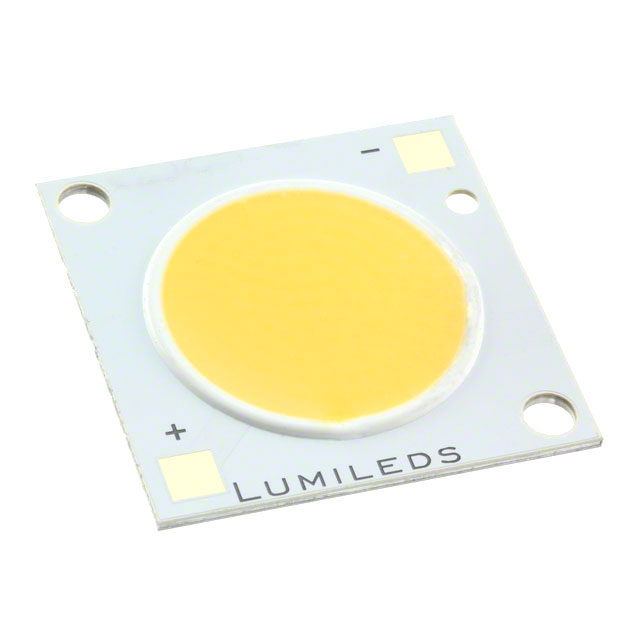

LED COB LUXEON WARM WHT SQ 2700K
Deep-Dive with AI
Search across all available documentation for this part.
L2C2-27801211E1900
ObsoleteLumileds
LED COB LUXEON WARM WHT SQ 2700K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | L2C2-27801211E1900 |
|---|---|
| CCT (K) | 2700 K |
| Color | White, Warm |
| Configuration | Square |
| CRI (Color Rendering Index) | 80 |
| Current - Test | 1.2 A |
| Height [z] | 1.5 mm |
| Lens Type | Flat |
| Light Emitting Surface (LES) [diameter] | 18.5 mm |
| Lumens/Watt @ Current - Test | 122 lm/W |
| Luminous Flux @ Current/Temperature | 5130 lm |
| Size / Dimension [x] | 28 mm |
| Size / Dimension [y] | 28 mm |
| Temperature - Test | 85 °C |
| Type | Chip On Board (COB) |
| Viewing Angle | 115 ° |
| Voltage - Forward (Vf) (Typ) | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
L2C2-27801211E1900
LED Lighting COBs Engines Modules Chip On Board (COB) LUXEON CoB Core Range White, Warm Square
