FMAD1153
ActiveFairview Microwave
ADAPT JACK-JACK TNC 1.3 VSWR
FMAD1153
ActiveFairview Microwave
ADAPT JACK-JACK TNC 1.3 VSWR
Description
General part information
FMAD1153

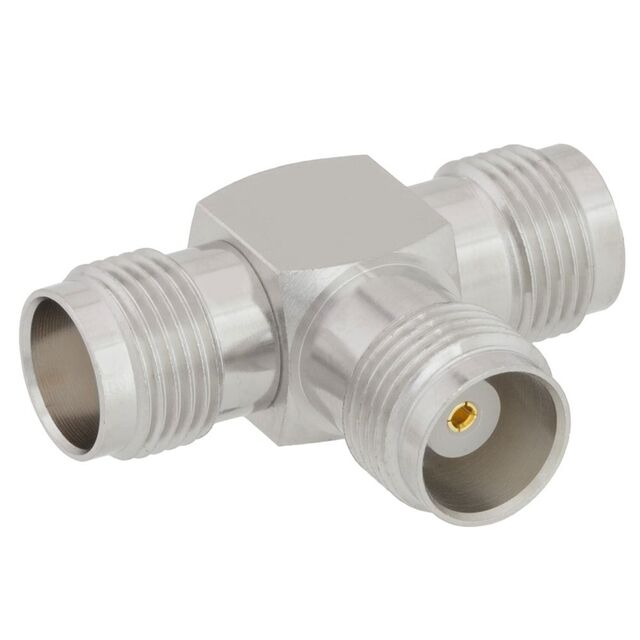

Adapter Coaxial Connector TNC Jack, Female Socket To TNC Jack, Female Socket (2) 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | FMAD1153 |
|---|---|
| Adapter Series | TNC to TNC |
| Adapter Type | Jack to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Center Gender | Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | TNC Jack, Female Socket |
| Convert To (Adapter End) | Female Socket, TNC Jack |
| Convert To (Adapter End) Count | 2 count |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 11 GHz |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Style | T-Shape |
