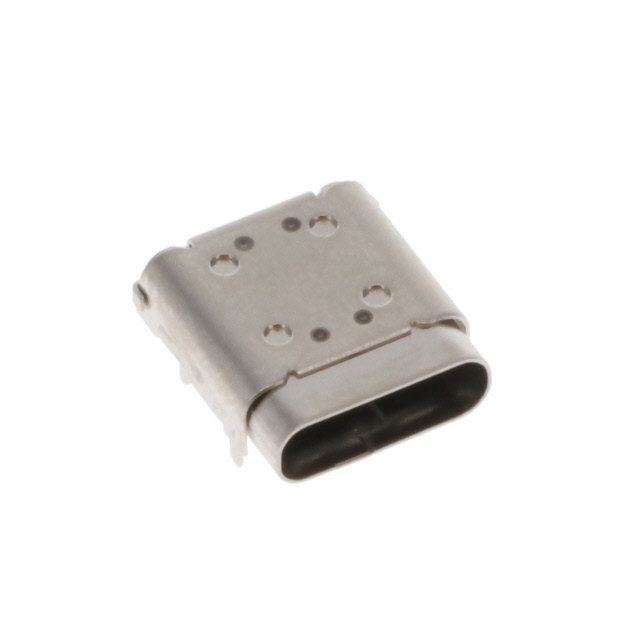

10137061-00021LF - 10137061-00021LF

10137061-00021LF

Active
Amphenol ICC (FCI)

CONN RCP USB3.0 TYPEC 24P SMD RA

Deep-Dive with AI

Search across all available documentation for this part.

Documents10152803-00011LFDatasheet+1
10137061-00021LF - 10137061-00021LF

10137061-00021LF

Active
Amphenol ICC (FCI)

CONN RCP USB3.0 TYPEC 24P SMD RA

Deep-Dive with AI

Documents10152803-00011LFDatasheet+1

Technical Specifications

Parameters and characteristics for this part

Specification10137061-00021LF
Connector TypeUSB-C (USB TYPE-C)
Contact FinishGold
Current Rating (Amps)0.25 A, 1.25 A, 5 A
FeaturesBoard Guide
GenderReceptacle
Insulation ColorBlack
Material Flammability RatingUL94 V-0
Mating Cycles10000
Mounting FeatureHorizontal
Mounting TypeThrough Hole, Surface Mount, Right Angle
Number of Contacts24
Number of Ports1
Operating Temperature [Max]85 °C
Operating Temperature [Min]-55 °C
Shell/Shielding MaterialStainless, Steel
ShieldingShielded
TerminationSolder
Voltage - Rated100 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 2.88
10$ 2.04
25$ 1.86
50$ 1.83
100$ 1.70
250$ 1.54
500$ 1.43
Digi-Reel® 1$ 2.88
10$ 2.04
25$ 1.86
50$ 1.83
100$ 1.70
250$ 1.54
500$ 1.43
Tape & Reel (TR) 1100$ 1.32
2200$ 1.23
3300$ 1.18
5500$ 1.13
7700$ 1.11

Description

General part information

10137061 Series

USB-C (USB TYPE-C) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 24 Position Surface Mount, Right Angle; Through Hole
