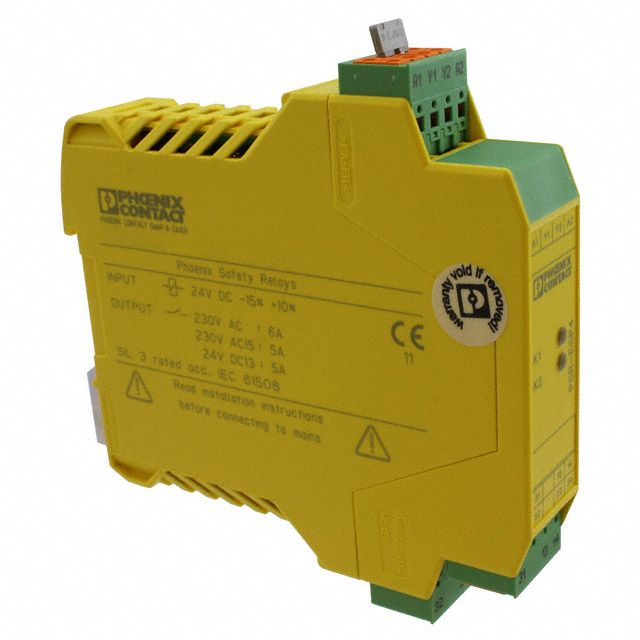

2981017
ActivePhoenix Contact
RELAY SAFETY DPST 6A 24V
2981017
ActivePhoenix Contact
RELAY SAFETY DPST 6A 24V
Description
General part information
2981017
RELAY SAFETY DPST 6A 24V
Technical Specifications
Parameters and characteristics for this part
| Specification | 2981017 |
|---|---|
| Coil Current | 50 mA |
| Coil Voltage | 24 VDC |
| Contact Form | DPST-NO |
| Contact Material | Gold (Au), Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 6 A |
| Form A Count | 2 |
| Mounting Type | DIN Rail |
| Operate Time | 60 ms |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -20 °C |
| Release Time | 20 ms |
| Switching Voltage AC (Max) | 250 VAC |
| Switching Voltage DC (Max) | 250 VDC |
| Termination Style | Spring Terminal |
