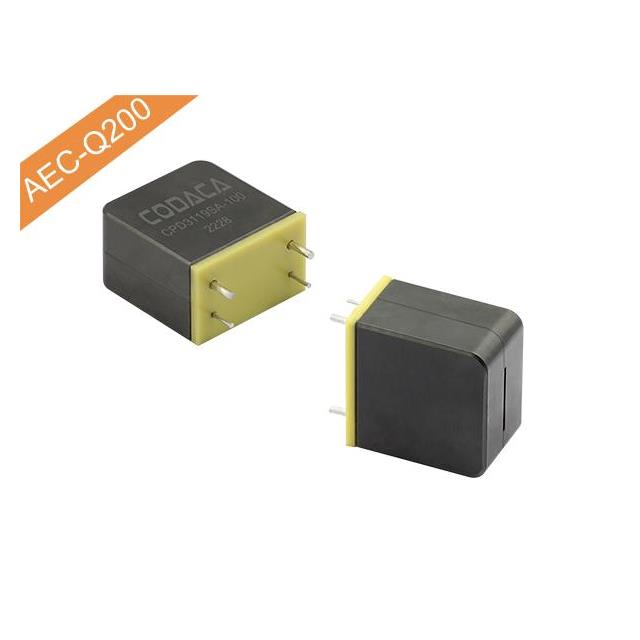

CPD3119SA-150M
15 µH Shielded Wirewound Inductor 15.5 A 10.3mOhm Max Vertical, 4 PC Pin
Technical Specifications
Parameters and characteristics for this part
| Specification | CPD3119SA-150M |
|---|---|
| Current - Saturation (Isat) | 48 A |
| Current Rating | 15.5 A |
| DC Resistance (DCR) (Max) | 10.3 mOhm |
| Height - Seated (Max) | 1.299 in |
| Inductance | 15 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4 PC Pin, Vertical |
| Package Leads | 4 Leads |
| Package Name | 3119, 4 PC Pin, Vertical |
| Package Pad Count | 4 PC Pin, 4 |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 1.22 in |
| Size / Dimension Width | 0.748 in |
| Supplier Device Package | 3119 |
| Supplier Device Package - Orientation | Vertical |
| Supplier Device Package - Pad Count | 4 PC Pin |
| Tolerance | 20 % |
| Type | Wirewound |
