Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TT253N | Bantam TT Patchcord Series |
|---|---|---|
| 1st Connector | - | Bantam Plug |
| 2nd Connector | - | Bantam Plug |
| Body Color | Gold, Black | Gold, Black |
| Channels | - | 3 Conductor |
| Color | - | Red |
| Connector Type | Phone Plug | Phone Plug |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Material - Plating | Natural | Natural |
| Gender | Male | Male |
| Housing Material | Thermoplastic | Thermoplastic |
| Includes | 2 Screws, 2 Terminals, 1 Connector, 1 Handle | 2 Screws, 2 Terminals, 1 Connector, 1 Handle |
| Industry Recognized Mating Diameter [diameter] | 0.173 in | 0.173 in |
| Industry Recognized Mating Diameter [diameter] | 4.39 mm | 4.39 mm |
| Internal Switch(s) | False | False |
| Length | - | 3.05 m |
| Length | - | 10 ft |
| Mating Length/Depth | 0.87 " | 0.87 " |
| Mating Length/Depth | 22 mm | 22 mm |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions/Contacts [custom] | 3 | 3 |
| Number of Positions/Contacts [custom] | 3 | 3 |
| Shielding | Unshielded | Unshielded, Shielded |
| Signal Lines | Stereo | Stereo |
| Termination | Screw | Screw |
| Usage | - | Patch |
Bantam TT Patchcord Series
Audio Cables / Video Cables / RCA Cables TWIN 3 COND PTCH CRD
| Part | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Signal Lines | Gender | Industry Recognized Mating Diameter [diameter] | Industry Recognized Mating Diameter [diameter] | Mating Length/Depth | Mating Length/Depth | Mounting Type | Connector Type | Includes | Body Color | Contact Material | Termination | Housing Material | Internal Switch(s) | Contact Material - Plating | Shielding | 2nd Connector | 1st Connector | Color | Length [x] | Length [x] | Channels | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

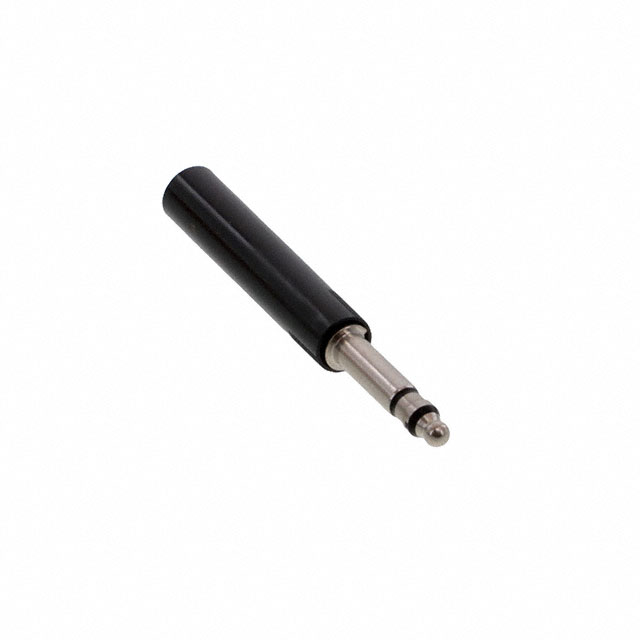

Switchcraft Inc. TT253N | 3 | 3 | Stereo | Male | 0.173 in | 4.39 mm | 0.87 " | 22 mm | Free Hanging (In-Line) | Phone Plug | 1 Connector, 1 Handle, 2 Screws, 2 Terminals | Black, Gold | Copper Alloy | Screw | Thermoplastic | Natural | Unshielded | ||||||||
Switchcraft Inc. TT10RX | Shielded | Bantam Plug | Bantam Plug | Red | 3.05 m | 10 ft | 3 Conductor | Patch |
