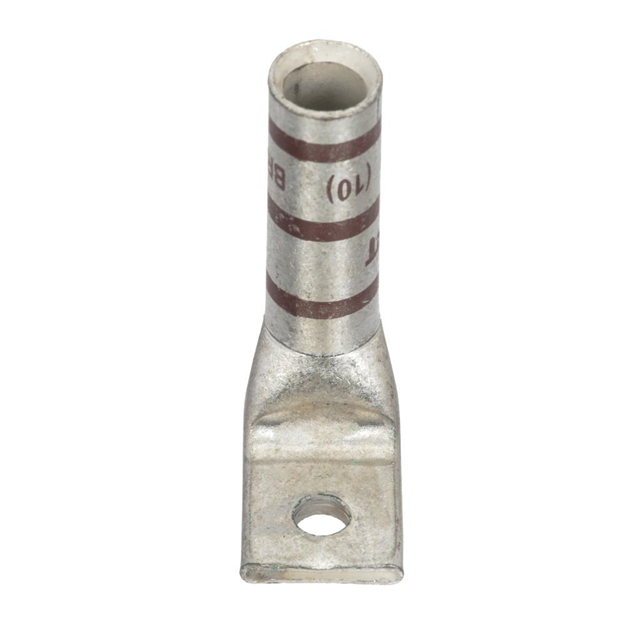

Specification	LCB2-10F-Q

Color	Brown
Contact Finish	Electro-Tin
Contact Material	Copper
Diameter - Barrel ID	0.31 in
Diameter - Barrel OD	0.42 in
Diameter - Ring ID	0.2 in
Insulation	Non-Insulated
Mounting Type	Right Angle, Free Hanging (In-Line)
Stud/Tab Size	10 Stud
Tab Thickness	0.1 in
Terminal Style	Single Stud Hole
Terminal Type	Rectangular Tongue
Termination	Barrel, Crimb
Width - Outer Edges	0.6 in
Wire Gauge	2 AWG

LCB2 Series

Part	Diameter - Ring ID	Diameter - Barrel ID	Contact Material	Contact Finish	Diameter - Barrel OD	Color	Termination	Terminal Type	Wire Gauge	Length - Overall	Width - Outer Edges	Terminal Style	Insulation	Tab Thickness	Mounting Type	Stud/Tab Size	Stud/Tab Size	Stud/Tab Size (Type)	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)
Panduit Corp LCB1/0-38W-X	0.41 in	0.39 in	Copper	Electro-Tin	0.52 in	Pink	Barrel Crimb	Rectangular Tongue	1/0 AWG	2.57 in	0.76 in	Single Stud Hole	Non-Insulated	0.12 in	Free Hanging (In-Line)	0.375 in	3 Stud 8 Stud
Panduit Corp LCB2-56WH-Q	0.34 in	0.31 in	Copper	Electro-Tin	0.42 in	Brown	Barrel Crimb	Rectangular Tongue	2 AWG		0.66 in	Single Stud Hole	Non-Insulated	0.1 in	45° Angle Free Hanging (In-Line)	0.3125 in	16 Stud 5 Stud	Stud
Panduit Corp LCB1/0-12WF-X	0.53 in	0.39 in	Copper	Electro-Tin	0.52 in	Pink	Barrel Crimb	Rectangular Tongue	1/0 AWG		0.8 in	Single Stud Hole	Non-Insulated	0.12 in	Free Hanging (In-Line) Right Angle	0.5 Stud
Panduit Corp LCB4-12WF-L	0.53 in	0.28 in	Copper	Electro-Tin	0.38 in	Gray	Barrel Crimb	Rectangular Tongue			0.75 in	Single Stud Hole	Non-Insulated	0.07 in	Free Hanging (In-Line) Right Angle	0.5 Stud			4 AWG	2 AWG
Panduit Corp LCB4-56F-L	0.34 in	0.28 in	Copper	Electro-Tin	0.38 in	Gray	Barrel Crimb	Rectangular Tongue			0.62 in	Single Stud Hole	Non-Insulated	0.07 in	Free Hanging (In-Line) Right Angle	0.3125 in	16 Stud 5 Stud	Stud	4 AWG	2 AWG
Panduit Corp LCB1/0-56W-X	0.34 in	0.39 in	Copper	Electro-Tin	0.52 in	Pink	Barrel Crimb	Rectangular Tongue	1/0 AWG	2.5 in	0.76 in	Single Stud Hole	Non-Insulated	0.12 in	Free Hanging (In-Line)	0.3125 in	16 Stud 5 Stud	Stud
Panduit Corp LCB350-12W-X
Panduit Corp LCB6-14F-L						Blue	Barrel Crimb	Rectangular Tongue	6 AWG		0.48 in	Single Stud Hole	Non-Insulated	0.08 in	Free Hanging (In-Line) Right Angle	0.25 Stud
Panduit Corp LCB1-12WH-E	0.53 in	0.36 in	Copper	Electro-Tin	0.47 in	Green	Barrel Crimb	Rectangular Tongue	1 AWG		0.75 in	Single Stud Hole	Non-Insulated	0.09 in	45° Angle Free Hanging (In-Line)	0.5 Stud
Panduit Corp LCB1-12W-E	0.53 in	0.36 in	Copper	Electro-Tin	0.47 in	Green	Barrel Crimb	Grounding Lug	1 AWG	2.7 in	0.75 in	Single Stud Hole	Non-Insulated	0.09 in	Free Hanging (In-Line)	0.5 Stud
