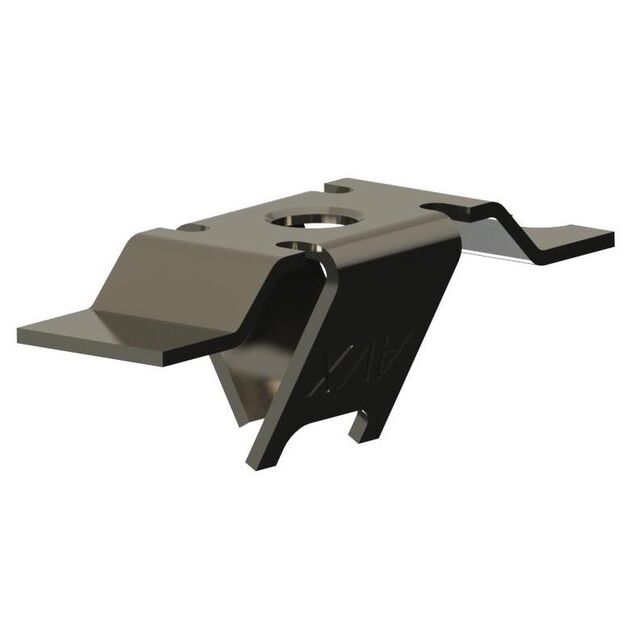

709296001133006
ActiveKYOCERA AVX
CONN SSL POKE-IN CONT 18-24AWG
709296001133006
ActiveKYOCERA AVX
CONN SSL POKE-IN CONT 18-24AWG
Description
General part information
709296001133006
18-24 AWG SSL Contact, Poke-In Wire Solder Surface Mount, Through Board
Technical Specifications
Parameters and characteristics for this part
| Specification | 709296001133006 |
|---|---|
| Connector Type | Contact, Poke-In Wire |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Mating Cycles | 5 cycles |
| Mounting Type | Through Board, Surface Mount |
| Number of Positions | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Style | Cable/Wire, Board |
| Termination | Solder |
| Voltage Rating | 300 VAC/DC |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 18 AWG |
