796911-3
ActiveTE Connectivity AMP Connectors
TB, WIRE TO BRD, R/A, 3WAY, 12AWG ROHS COMPLIANT: YES
796911-3
ActiveTE Connectivity AMP Connectors
TB, WIRE TO BRD, R/A, 3WAY, 12AWG ROHS COMPLIANT: YES
Description
General part information
796911-3

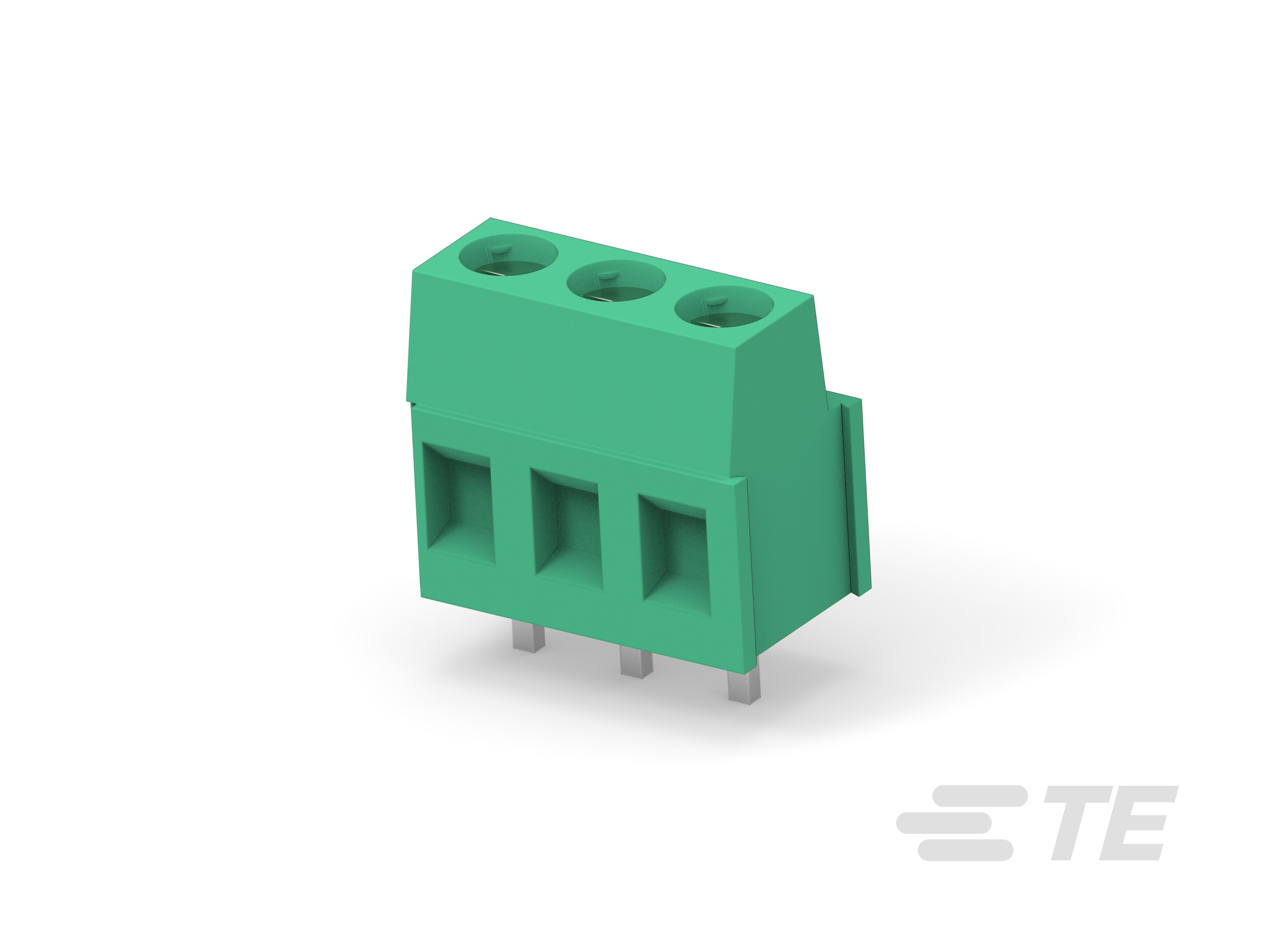

3 Position PCB Terminal Block, Header, Wire-to-Board, 5.08 mm [.2 in] Centerline, 1 Row, 90° Wire Entry Angle, 30 – 12 AWG, .05 – 3 mm² Wire, 300 VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | 796911-3 |
|---|---|
| Color | Green |
| Current | 17.5 A |
| Features | Interlocking (Side) |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 5.08 mm |
| Positions Per Level | 3 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 30 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
| Wire Termination | Rising Cage Clamp, Screw |
