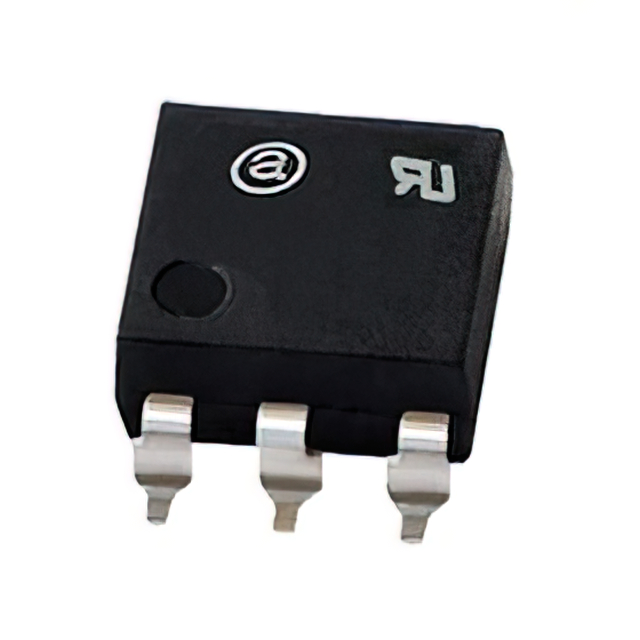

APR311A066000E00G

Active

AMPHENOL ANYTEK

RELAY MOS 6 PIN SMD 60V AC/DC

Search across all available documentation for this part.

Active

AMPHENOL ANYTEK

RELAY MOS 6 PIN SMD 60V AC/DC

Technical Specifications

Parameters and characteristics commom to parts in this series

RELAY MOS 4 PIN SMD 400V AC/DC

Part	Output Type	Circuit	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Load Current	Supplier Device Package	Voltage - Input [Max]	Voltage - Input [Min]	On-State Resistance (Max) [Max]	Package / Case	Voltage - Load [Min]	Voltage - Load [Max]
AMPHENOL ANYTEK APR311B404000E00G	AC, DC	SPST-NC (1 Form B)	cURus, UR	85 °C	-40 °C	Surface Mount	100 mA	4-SMD	1.5 VDC	0.9 V	50 Ohm	4-SMD, Gull Wing
AMPHENOL ANYTEK APR311A064000E00G	AC, DC		cURus, UR	85 °C	-40 °C	Surface Mount	550 mA	4-SMD	1.5 VDC	0.9 V	1.4 Ohms	4-SMD, Gull Wing	0 V	60 V
AMPHENOL ANYTEK APR311C358000E00G	AC, DC	DPST-NO/NC	cURus, UR	85 °C	-40 °C	Surface Mount	130 mA	8-SMD	1.5 VDC	0.9 V	50 Ohm		0 V	350 V
AMPHENOL ANYTEK APR311A066000E00G	AC, DC		cURus, UR	85 °C	-40 °C	Surface Mount	550 mA	6-SMD	1.5 VDC	0.9 V	1.4 Ohms	6-SMD, Gull Wing	0 V	60 V
AMPHENOL ANYTEK APR311A354000E00G	AC, DC		cURus, UR	85 °C	-40 °C	Surface Mount	130 mA	4-SMD	1.5 VDC	0.9 V	30 Ohm	4-SMD, Gull Wing	0 V	350 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NO (1 Form A) 6-SMD, Gull Wing
