10A103
ActiveGowanda Electronics

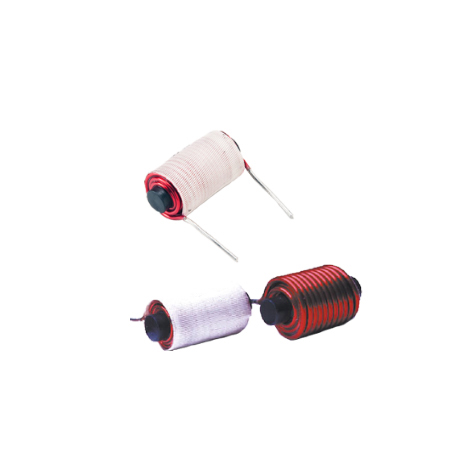

RADIAL-LEADED HIGH CURRENT CHOKE
10A103
ActiveGowanda Electronics
RADIAL-LEADED HIGH CURRENT CHOKE
Description
General part information
10A103
100 µH Unshielded Wirewound Inductor 10 A 30mOhm Radial, Horizontal Cylinder
Technical Specifications
Parameters and characteristics for this part
| Specification | 10A103 |
|---|---|
| Current Rating | 10 A |
| DC Resistance (DCR) | 30 mOhm |
| Frequency - Self Resonant | 2.5 MHz |
| Inductance | 100 µH |
| Inductance Frequency - Test | 1 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Horizontal Cylinder, Radial |
| Package Name | Radial |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.937 in |
| Size / Dimension Length | 1.625 in |
| Tolerance | 10 % |
| Type | Wirewound |
