8232 0102000

Active

Belden Inc.

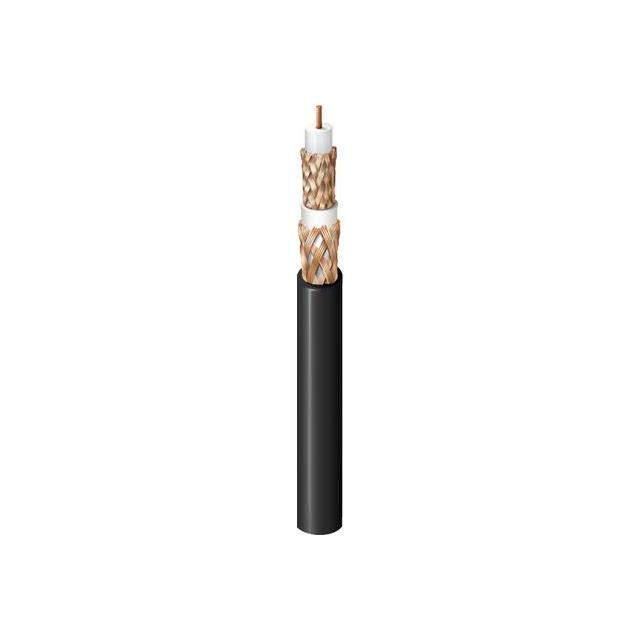

RG-59/U TYPE TRIAX

Search across all available documentation for this part.

Active

Belden Inc.

RG-59/U TYPE TRIAX

Technical Specifications

Parameters and characteristics for this part

Specification	8232 0102000

Cable Group	RG-59
Cable Type	Triaxial
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.145 "
Dielectric Diameter [diameter]	3.68 mm
Impedance	75 Ohms
Jacket (Insulation) Material	Polyethylene (PE)
Jacket Color	Black
Length [x]	2000 ft
Length [x]	609.6 m
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-55 °C
Shield Coverage	80 %
Shield Material	Copper, Bare
Shield Type	Braid
Usage	Video
VoP, Velocity of Propagation	83
Wire Gauge	20 AWG

Part	Usage	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Shield Material	VoP, Velocity of Propagation	Jacket (Insulation) Material	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge	Length [x]	Length [x]	Cable Type	Cable Group	Jacket Color	Conductor Strand	Impedance	Shield Type	Conductor Material	Shield Coverage
Belden Inc. 8232 0102000	Video	0.145 "	3.68 mm	Copper Bare	83	Polyethylene (PE)	80 C	-55 °C	20 AWG	2000 ft	609.6 m	Triaxial	RG-59	Black	Solid	75 Ohms	Braid	Copper Bare	80 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	2000	$ 2.57

General part information

Triaxial Cable 20 AWG RG-59 2000.0' (609.60m) 75 Ohms
