10133084-101LF

Active

Amphenol ICC (FCI)

CONN HEADER 2POS PCB

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN HEADER 2POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	10133084-101LF

Color	Black
Connector Type	Male Blades, Header
Contact Finish	Tin
Contact Layout, Typical	2 Power
Features	Board Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.224 in
Pitch [x]	5.7 mm
Termination	Solder

Part	Pitch [x]	Pitch [x]	Material Flammability Rating	Number of Positions Loaded	Color	Mounting Type	Connector Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Layout, Typical	Contact Finish	Features	Number of Positions
Amphenol ICC (FCI) 10133084-101LF	0.224 in	5.7 mm	UL94 V-0	All	Black	Through Hole Right Angle	Header Male Blades	Solder	-40 °C	105 ░C	2 Power	Tin	Board Guide	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

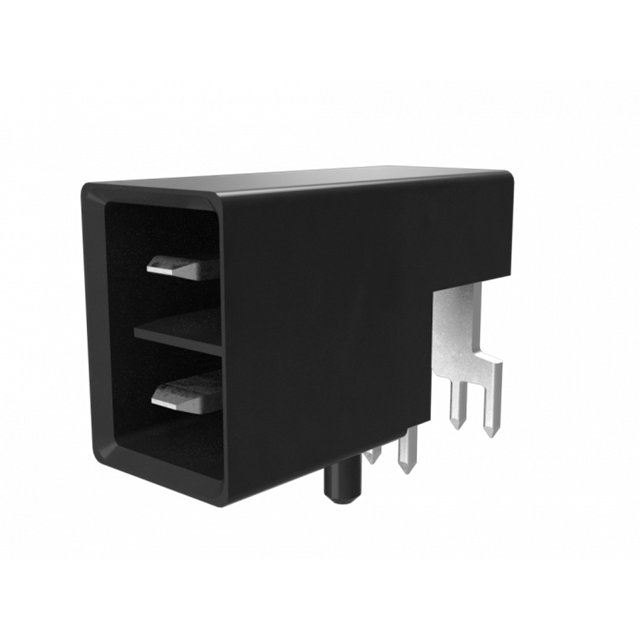

2 Connector Header, Male Blades Through Hole, Right Angle Black
