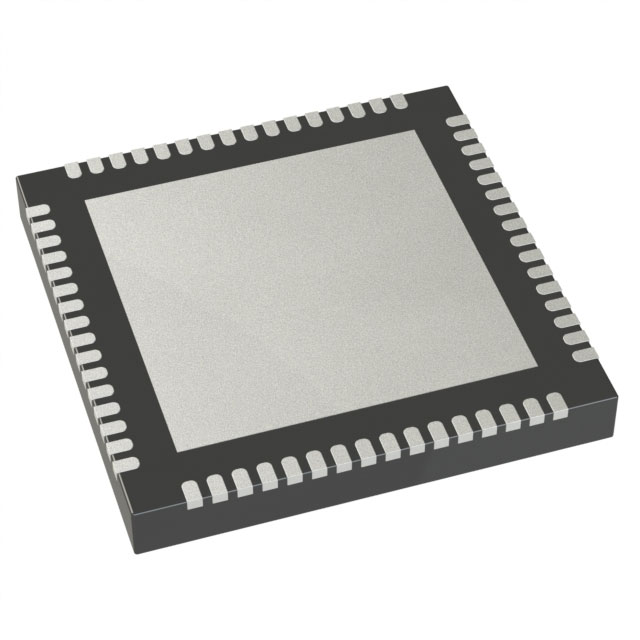

DSPIC33FJ64GS606-E/MR
ActiveMicrochip Technology
16 BIT MCU/DSP 40MIPS 64KB FLASH 64 QFN 9X9X0.9MM TUBE ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DSPIC33FJ64GS606-E/MR
ActiveMicrochip Technology
16 BIT MCU/DSP 40MIPS 64KB FLASH 64 QFN 9X9X0.9MM TUBE ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DSPIC33FJ64GS606-E/MR | DSPIC33FJ64GS606 Series |
|---|---|---|
| - | - | |
| Connectivity | IrDA, UART/USART, I2C, CANbus, SPI, LINbus | IrDA, UART/USART, I2C, CANbus, SPI, LINbus |
| Core Processor | dsPIC | dsPIC |
| Core Size | 16-Bit | 16-Bit |
| Data Converters | D/A 1x10b, A/D 16x10b | D/A 1x10b, A/D 16x10b |
| Grade | Automotive | Automotive |
| Mounting Type | Surface Mount | Surface Mount |
| Number of I/O | 58 | 58 |
| Operating Temperature [Max] | 125 °C | 85 - 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Oscillator Type | Internal | Internal |
| Package / Case | 64-VFQFN Exposed Pad | 64-VFQFN Exposed Pad, 64-TQFP |
| Peripherals | WDT, QEI, Brown-out Detect/Reset, POR, DMA, PWM | WDT, QEI, Brown-out Detect/Reset, POR, DMA, PWM |
| Program Memory Size | 64 KB | 64 KB |
| Program Memory Type | FLASH | FLASH |
| Qualification | AEC-Q100 | AEC-Q100 |
| RAM Size | 9 K | 9 K |
| Speed | 40 MIPs | 40 MIPs |
| Supplier Device Package | 64-VQFN (9x9) | 64-VQFN (9x9), 64-TQFP (10x10) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 120 | $ 6.59 | |
| Microchip Direct | TUBE | 1 | $ 7.99 | |
| 25 | $ 7.25 | |||
| 100 | $ 6.59 | |||
| 1000 | $ 6.05 | |||
| 5000 | $ 5.77 | |||
| Newark | Each | 100 | $ 6.79 | |
DSPIC33FJ64GS606 Series
16 BIT MCU/DSP 50MIPS 64KB FLASH 64 TQFP 10X10X1MM T/R ROHS COMPLIANT: YES
| Part | Grade | Oscillator Type | Operating Temperature [Min] | Operating Temperature [Max] | Connectivity | Package / Case | Data Converters | Core Size | Program Memory Size | Core Processor | Mounting Type | Supplier Device Package | Peripherals | Qualification | Number of I/O | RAM Size | Program Memory Type | Speed |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology DSPIC33FJ64GS606T-50I/PT | ||||||||||||||||||
Microchip Technology DSPIC33FJ64GS606T-50I/MR | ||||||||||||||||||
Microchip Technology DSPIC33FJ64GS606T-I/PT | ||||||||||||||||||
Microchip Technology DSPIC33FJ64GS606-E/MR | ||||||||||||||||||
Microchip Technology DSPIC33FJ64GS606-E/PT | ||||||||||||||||||
Microchip Technology DSPIC33FJ64GS606-E/MR | Automotive | Internal | -40 °C | 125 °C | CANbus, I2C, IrDA, LINbus, SPI, UART/USART | 64-VFQFN Exposed Pad | A/D 16x10b, D/A 1x10b | 16-Bit | 64 KB | dsPIC | Surface Mount | 64-VQFN (9x9) | Brown-out Detect/Reset, DMA, POR, PWM, QEI, WDT | AEC-Q100 | 58 | 9 K | FLASH | 40 MIPs |
Microchip Technology DSPIC33FJ64GS606-I/MR | Internal | -40 °C | 85 °C | CANbus, I2C, IrDA, LINbus, SPI, UART/USART | 64-VFQFN Exposed Pad | A/D 16x10b, D/A 1x10b | 16-Bit | 64 KB | dsPIC | Surface Mount | 64-VQFN (9x9) | Brown-out Detect/Reset, DMA, POR, PWM, QEI, WDT | 58 | 9 K | FLASH | 40 MIPs | ||
Microchip Technology DSPIC33FJ64GS606T-50I/PT | ||||||||||||||||||
Microchip Technology DSPIC33FJ64GS606T-50I/MR | Internal | -40 °C | 85 °C | CANbus, I2C, IrDA, LINbus, SPI, UART/USART | 64-VFQFN Exposed Pad | A/D 16x10b, D/A 1x10b | 16-Bit | 64 KB | dsPIC | Surface Mount | 64-VQFN (9x9) | Brown-out Detect/Reset, DMA, POR, PWM, QEI, WDT | 58 | 9 K | FLASH | |||
Microchip Technology DSPIC33FJ64GS606-I/MR | ||||||||||||||||||
Microchip Technology DSPIC33FJ64GS606T-I/PT | ||||||||||||||||||
Microchip Technology DSPIC33FJ64GS606-E/PT | Automotive | Internal | -40 °C | 125 °C | CANbus, I2C, IrDA, LINbus, SPI, UART/USART | 64-TQFP | A/D 16x10b, D/A 1x10b | 16-Bit | 64 KB | dsPIC | Surface Mount | 64-TQFP (10x10) | Brown-out Detect/Reset, DMA, POR, PWM, QEI, WDT | AEC-Q100 | 58 | 9 K | FLASH | 40 MIPs |
Microchip Technology DSPIC33FJ64GS606T-50I/PT | Internal | -40 °C | 85 °C | CANbus, I2C, IrDA, LINbus, SPI, UART/USART | 64-TQFP | A/D 16x10b, D/A 1x10b | 16-Bit | 64 KB | dsPIC | Surface Mount | 64-TQFP (10x10) | Brown-out Detect/Reset, DMA, POR, PWM, QEI, WDT | 58 | 9 K | FLASH | |||
Microchip Technology DSPIC33FJ64GS606-E/PT | ||||||||||||||||||
Microchip Technology DSPIC33FJ64GS606T-I/PT | Internal | -40 °C | 85 °C | CANbus, I2C, IrDA, LINbus, SPI, UART/USART | 64-TQFP | A/D 16x10b, D/A 1x10b | 16-Bit | 64 KB | dsPIC | Surface Mount | 64-TQFP (10x10) | Brown-out Detect/Reset, DMA, POR, PWM, QEI, WDT | 58 | 9 K | FLASH | 40 MIPs |
Description
General part information
DSPIC33FJ64GS606 Series
These devices offer features supporting common, multi-loop digital switch-mode power supplies (SMPS) and other digital power-conversion applications such as: AC to DC Converters, DC to DC Converters, Power Factor Correction (PFC), Uninterruptible power supply (UPS), Inverters, Embedded Power-Supply Controllers, Circuit Breakers, Arc Fault Detection
Documents
Technical documentation and resources
