1-796403-1

Active

TE Connectivity AMP Connectors

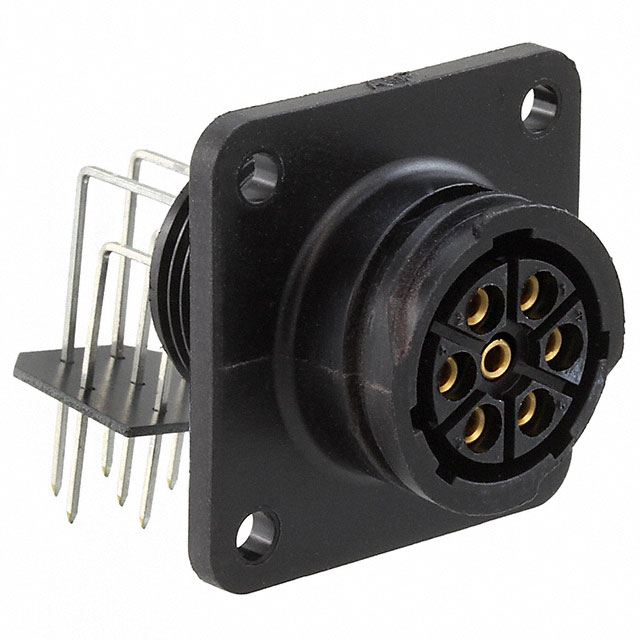

CONN RCPT MALE 4POS GOLD SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT MALE 4POS GOLD SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-796403-1	796403 Series

Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold, PdNi +Gold	Gold, PdNi +Gold
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Material	Brass	Brass
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Flange	Flange
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	4	4
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	A	A
Primary Material	Plastic	Plastic
Shell Size - Insert	11-4	11-4
Termination	Solder	Solder
Voltage Rating	250 VAC	250 VAC

CONN RCPT MALE 4POS GOLD SOLDER

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Primary Material	Number of Positions	Termination	Mounting Feature	Connector Type	Mounting Type	Contact Finish - Mating	Orientation	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert	Contact Material	Material Flammability Rating
TE Connectivity AMP Connectors 1-796403-2	30 Áin	0.76 Ám	Plastic	4	Solder	Flange	Male Pins, Receptacle	Panel Mount, Right Angle, Through Hole	Gold	A	250 VAC	105 ░C	-55 °C	11-4	Brass	UL94 V-0
TE Connectivity AMP Connectors 1-796403-1	30 Áin	0.76 Ám	Plastic	4	Solder	Flange	Male Pins, Receptacle	Panel Mount, Right Angle, Through Hole	Gold, PdNi +Gold	A	250 VAC	105 ░C	-55 °C	11-4	Brass	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Male Pins Solder
