CUS400M-12/FX5

Active

TDK Corporation

AC/DC ENCLOSED POWER SUPPLY (PSU), ITE & MEDICAL, 1 OUTPUTS, 250 W, 12 V, 20.83 A

Find alt

Alpha

CUS400M-12/FX5

Active

TDK Corporation

AC/DC ENCLOSED POWER SUPPLY (PSU), ITE & MEDICAL, 1 OUTPUTS, 250 W, 12 V, 20.83 A

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

CUS400M Series

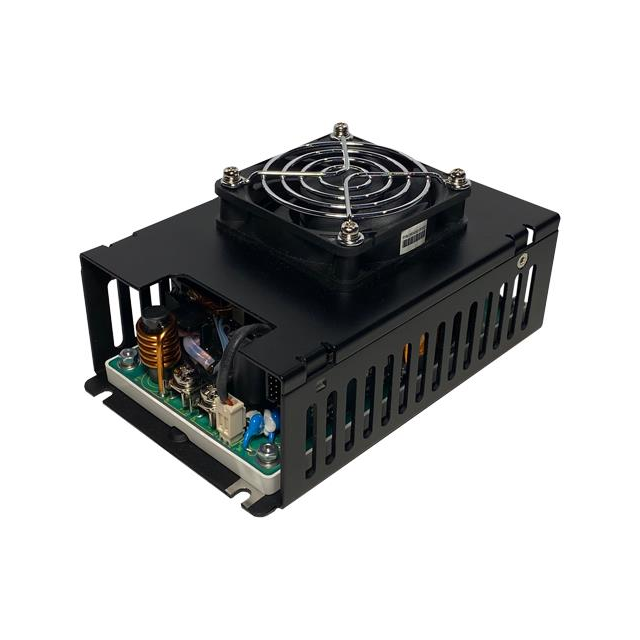

CUS400M-12/FX5 is a 400W CUS400M series AC/DC power supply. The compact CUS400M is packaged in the industry standard 3x5" footprint. The series can deliver 400W with forced air or 250W when convection cooled with a 400W peak power for extended periods of time (minutes). Cooling is also assisted via conduction through the base into the equipment chassis. With Medical & ITE certifications, the units can be used in both Class I & Class II (no ground wire) applications, and meets Class B Conducted and Radiated EMI.

Technical Specifications

Parameters and characteristics for this part

Specification	CUS400M-12/FX5

Applications	ITE (Commercial), Medical
Approval Agency	CE
Current - Output 1	20.83 A
Features	PFC, Remote On/Off, Standby Output, Adjustable Output, Remote Sense, Universal Input
Minimum Load Required	No
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Power (Watts)	400 W, 250 W
Size / Dimension Height	2.66 in
Size / Dimension Length	5.59 in
Size / Dimension Width	3.54 in
Standard Number	60601-1, 62368-1
Type	Enclosed
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	85 VAC
Voltage - Isolation	4000 Vpk
Voltage - Output 1	12 V

CUS400M Series

Part	Minimum Load Required	Power (Watts)	Size / Dimension Length	Size / Dimension Width	Size / Dimension Height	Type	Operating Temperature (Max)	Operating Temperature (Min)	Features	Mounting Type	Voltage - Isolation	Current - Output 1	Voltage - Output 1	Standard Number	Number of Outputs	Applications	Approval Agency	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum
TDK Corporation CUS400M-48/A	No	250 W 400 W	5.59 in	3.54 in	1.67 in	Enclosed	70 °C	-20 °C	Adjustable Output PFC Remote Sense Universal Input	Chassis Mount	4000 Vpk	5.21 A	48 V	60601-1 62368-1	1	ITE (Commercial) Medical	CE	85 VAC	264 V
TDK Corporation CUS400M-24/AX5	No	250 W 400 W	5.59 in	3.54 in	1.67 in	Enclosed	70 °C	-20 °C	Adjustable Output Remote On/Off Remote Sense Standby Output Universal Input	Chassis Mount	4000 Vpk	10.42 A	24 V	60601-1 60950-1 62368-1	1	ITE (Commercial) Medical	CE	85 VAC	264 V
TDK Corporation CUS400M-24/A	No	250 W 400 W	5.59 in	3.54 in	1.67 in	Enclosed	70 °C	-20 °C	Adjustable Output Remote Sense Standby Output Universal Input	Chassis Mount	4000 Vpk	10.42 A	24 V	60601-1 60950-1 62368-1	1	ITE (Commercial) Medical	CE	85 VAC	264 V
TDK Corporation CUS400M-36/A	No	250 W 400 W	5.59 in	3.54 in	1.67 in	Enclosed	70 °C	-20 °C	Adjustable Output PFC Remote Sense Universal Input	Chassis Mount	4000 Vpk	6.94 A	36 V	60601-1 62368-1	1	ITE (Commercial) Medical	CE	85 VAC	264 V
TDK Corporation CUS400M-19/F	No	250 W 400 W	5.59 in	3.54 in	2.66 in	Enclosed	70 °C	-20 °C	Adjustable Output PFC Remote Sense Universal Input	Chassis Mount	4000 Vpk	13.16 A	19 V	60601-1 62368-1	1	ITE (Commercial) Medical	CE	85 VAC	264 V
TDK Corporation CUS400M-12/X5	No	250 W 400 W	5.04 in	3.05 in	1.56 in	Open Frame	70 °C	-20 °C	Adjustable Output Remote On/Off Remote Sense Standby Output Universal Input	Chassis Mount	4000 Vpk	20.83 A	12 V	60601-1 60950-1 62368-1	1	ITE (Commercial) Medical	CE	85 VAC	264 V
TDK Corporation CUS400M-19/C	No	250 W 400 W	5.57 in	3.36 in	1.61 in	Open Frame	70 °C	-20 °C	Adjustable Output Baseplate PFC Remote Sense Universal Input	Chassis Mount	4000 Vpk	13.16 A	19 V	60601-1 62368-1	1	ITE (Commercial) Medical	CE	85 VAC	264 V
TDK Corporation CUS400M-12/F	No	250 W 400 W	5.59 in	3.54 in	2.66 in	Enclosed	70 °C	-20 °C	Adjustable Output Remote Sense Standby Output Universal Input	Chassis Mount	4000 Vpk	20.83 A	12 V	60601-1 60950-1 62368-1	1	ITE (Commercial) Medical	CE	85 VAC	264 V
TDK Corporation CUS400M-19/X5		250 W 400 W	5.04 in	3.05 in	1.56 in	Open Frame	70 °C	-20 °C	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input	Chassis Mount	4000 Vpk	13.16 A	19 V	60601-1 62368-1	1	ITE (Commercial) Medical	CE	85 VAC	264 V
TDK Corporation CUS400M-12/A	No	250 W 400 W	5.59 in	3.54 in	1.67 in	Enclosed	70 °C	-20 °C	Adjustable Output Remote Sense Standby Output Universal Input	Chassis Mount	4000 Vpk	20.83 A	12 V	60601-1 60950-1 62368-1	1	ITE (Commercial) Medical	CE	85 VAC	264 V
