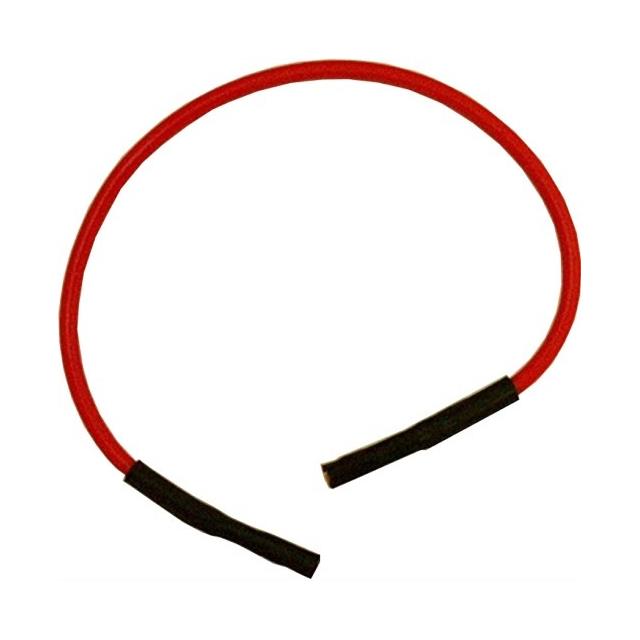

9120-12RED

Active

E-Z-Hook

TEST LEAD SOCKET TO SOCKET 12"

Search across all available documentation for this part.

Active

E-Z-Hook

TEST LEAD SOCKET TO SOCKET 12"

Technical Specifications

Parameters and characteristics for this part

TEST LEAD SOCKET TO SOCKET 12"

Part	2nd Connector	2nd Connector	2nd Connector	Material - Insulation	Configuration	Wire Gauge	Cable Length	Cable Length	Current Rating (Amps)	Contents [custom]	Contents	Temperature Range	Temperature Range	1st Connector	1st Connector	1st Connector	Voltage - Rated
E-Z-Hook 9120-12RED	Socket, Square	0.64 mm	0.025 in	Poly-Vinyl Chloride (PVC)	Socket to Socket	28 AWG	12 in	304.8 mm	1 A	1	Red	105 °C	221 °F	0.025 in	Socket, Square	0.64 mm	600 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12.0" (304.80mm) Socket, Square, 0.025" (0.64mm) To Socket, Square, 0.025" (0.64mm) Test Lead 600VDC 1 Lead, Red

Technical documentation and resources

No documents available
