MNR35J5RJ560
UnknownRohm Semiconductor

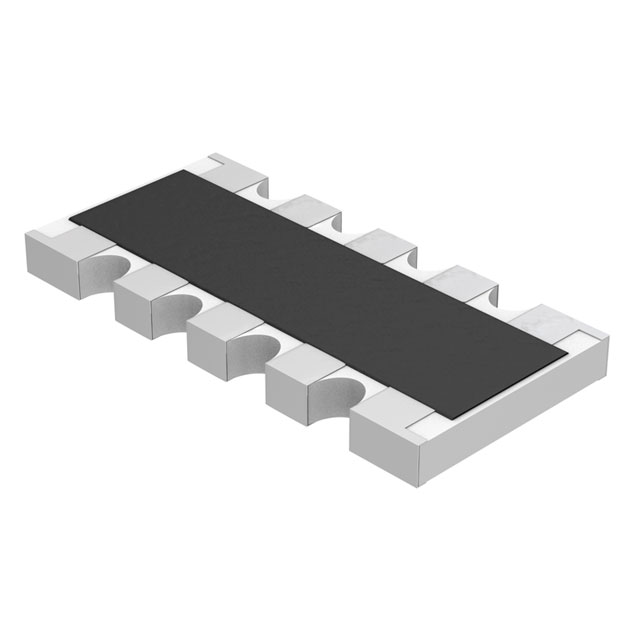

RES ARRAY 8 RES 56 OHM 2512
MNR35J5RJ560
UnknownRohm Semiconductor
RES ARRAY 8 RES 56 OHM 2512
Description
General part information
MNR35J5RJ560
56 Ohm ±5% 62.5mW Power Per Element Bussed 8 Resistor Network/Array ±200ppm/°C 2512 (6432 Metric), Convex, Long Side Terminals
Technical Specifications
Parameters and characteristics for this part
| Specification | MNR35J5RJ560 |
|---|---|
| Circuit Type | Bussed |
| Grade | Automotive |
| Height - Seated (Max) | 0.026 in |
| Mounting Type | Surface Mount |
| Number of Pins | 10 |
| Number of Resistors | 8 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Convex, 2512 (6432 Metric), Long Side Terminals |
| Power Per Element | 62.5 mW |
| Qualification | AEC-Q200 |
| Resistance | 56 Ohm |
| Size / Dimension Length | 0.252 in |
| Size / Dimension Width | 0.122 in |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 5 % |
