Description
General part information

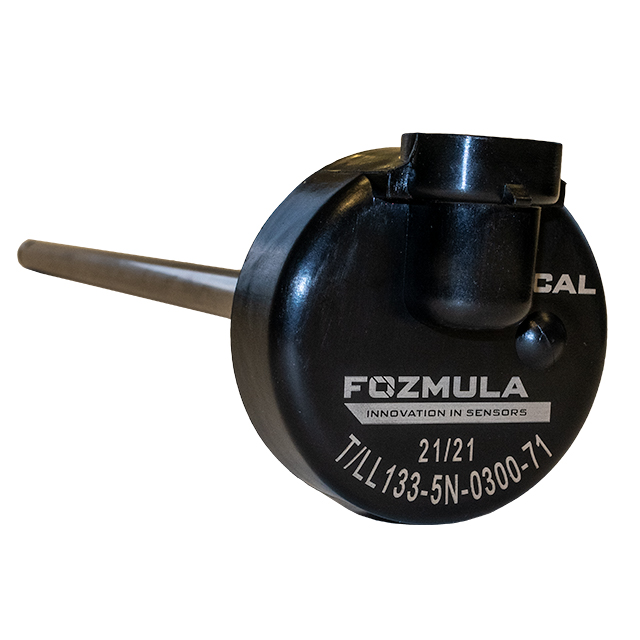

TLL133-5N-0300-71
Liquid Level Sensor Resistive 240 ~ 32Ohm Output 1/2" NPT
Technical Specifications
Parameters and characteristics for this part
| Specification | TLL133-5N-0300-71 |
|---|---|
| Current | 30 mA |
| Material - Housing & Prism | Glass Filled Nylon |
| Mounting Size | 12.7 mm |
| Mounting Type | NPT |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Output Configuration (Max) | 32 Ohm |
| Output Configuration (Min) | 240 |
| Output Type | Resistive |
| Type | Liquid |
| Voltage Rating (Max) | 34 V |
| Voltage Rating (Min) | 9 V |
