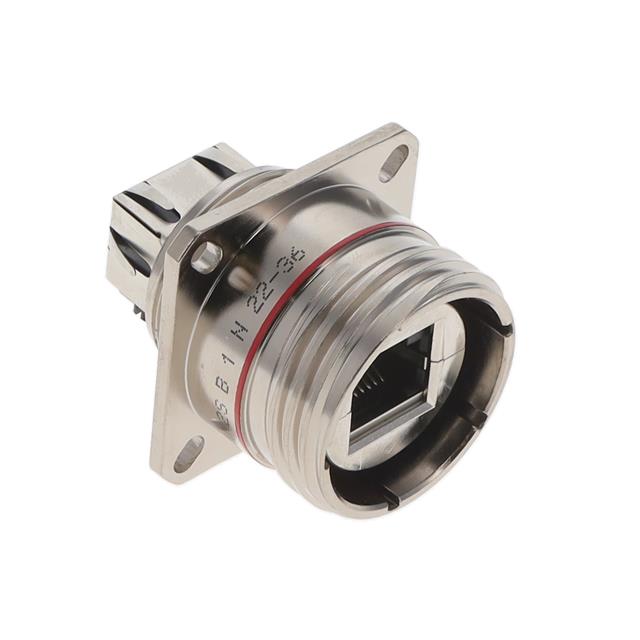

Specification	RJFTV2SB1N

Connector Type	Jack, Ethernet, RJ45
Features	Circular Threaded Coupling
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
LED Color	Does Not Contain LED
Mounting Type	Square Flange, Panel Mount
Number of Contacts	8
Number of Ports	1
Number of Positions	8
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Orientation	Straight
Ratings	Cat5e
Shielding	Unshielded
Tab Direction	User Selectable
Termination	PC Board, Solder

RJFTV2 Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Features	Shielding	Mounting Type	Ratings	Shell Material	Finish	Ingress Protection IP Rating	Ingress Protection Description	Convert To (Adapter End)	Convert From (Adapter End)	Type	Orientation	LED Color	Connector Type	Termination	Number of Positions	Number of Contacts	Number of Rows	Number of Ports	Tab Direction	Style	Length	Color	Cable Type	Mounting Feature
McGill Microwave Systems RJFTV2PE2G00	-40 °C	85 °C	Circular Threaded Coupling	Shielded	Panel Mount Square Flange	Cat5e	Aluminum	Olive Drab Cadmium Plated	IP68	Dust Tight Waterproof	PCB	8p8c (RJ45) Jack	Coupler
McGill Microwave Systems RJFTV2PEM2N00	-40 °C	85 °C	Circular Threaded Coupling	Unshielded	Panel Mount Square Flange	Cat5e			IP67	Dust Tight Waterproof				Straight	Does Not Contain LED	Ethernet Jack RJ45	PC Board Solder	8	8	1	1	User Selectable
McGill Microwave Systems RJFTV2PEM2G00	-40 °C	85 °C	Circular Threaded Coupling	Unshielded	Panel Mount Square Flange	Cat5e			IP67	Dust Tight Waterproof				Straight	Does Not Contain LED	Ethernet Jack RJ45	PC Board Solder	8	8	1	1	User Selectable
McGill Microwave Systems RJFTV2SA2G05100BTX			Circular Threaded Coupling	Double Shielded	Flange Panel Mount											Ethernet Jack to Plug RJ45		8	8				Cat5e Industrial Environments - IP68	1.64 ft	Gray	Round Cable
McGill Microwave Systems RJFTV2SA2N03100BTX			Circular Threaded Coupling	Double Shielded	Flange Panel Mount											Ethernet Jack to Plug RJ45		8	8				Cat5e Industrial Environments - IP68	0.98 ft	Gray	Round Cable
McGill Microwave Systems RJFTV2PEM1N	-40 °C	85 °C	Circular Threaded Coupling	Unshielded	Panel Mount Square Flange	Cat5e	Aluminum	Nickel Plated	IP67	Dust Tight Waterproof	8p8c (RJ45) Jack	8p8c (RJ45) Jack	Coupler														Metal Gland
McGill Microwave Systems RJFTV2PE1G	-40 °C	85 °C	Circular Threaded Coupling	Unshielded	Panel Mount Square Flange	Cat5e	Aluminum	Olive Drab Cadmium Plated	IP67	Dust Tight Waterproof	8p8c (RJ45) Jack	8p8c (RJ45) Jack	Coupler
McGill Microwave Systems RJFTV2SA2G15100BTX			Circular Threaded Coupling	Double Shielded	Flange Panel Mount											Ethernet Jack to Plug RJ45		8	8				Cat5e Industrial Environments - IP68	4.92 ft	Gray	Round Cable
McGill Microwave Systems RJFTV2PE2N03100BTX			Circular Threaded Coupling	Double Shielded	Flange Panel Mount											Ethernet Jack to Plug RJ45		8	8				Cat5e Industrial Environments - IP68	0.98 ft	Gray	Round Cable
McGill Microwave Systems RJFTV2SA2N05100BTX			Circular Threaded Coupling	Double Shielded	Flange Panel Mount											Ethernet Jack to Plug RJ45		8	8				Cat5e Industrial Environments - IP68	1.64 ft	Gray	Round Cable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

RJFTV2SB1N | Datasheet
