CBD-2SALRF3GT-24IN
ActiveLighthorse Technologies, Inc
CBL ASSY RP-SMA JACK TO JACK 24"
CBD-2SALRF3GT-24IN
ActiveLighthorse Technologies, Inc
CBL ASSY RP-SMA JACK TO JACK 24"
Description
General part information
CBD-2SALRF3GT-24IN

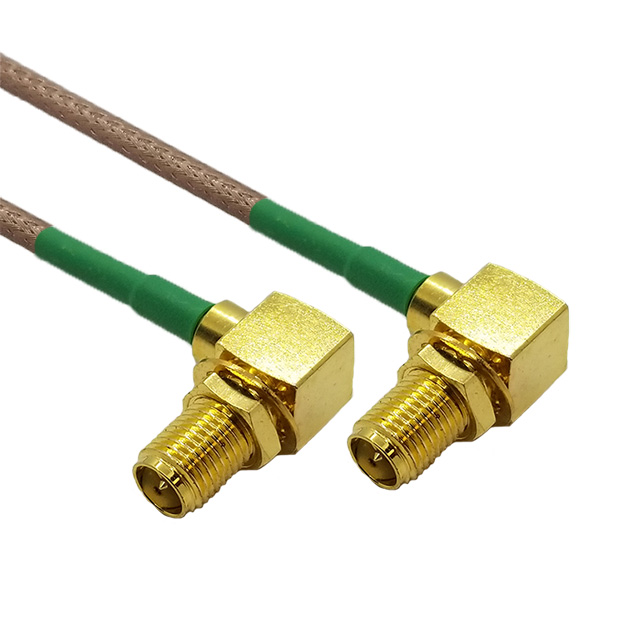

Cable Assembly Coaxial RP-SMA to RP-SMA RG-316 24.00" (609.60mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | CBD-2SALRF3GT-24IN |
|---|---|
| 1st Connector | RP-SMA Jack, Right Angle |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Male |
| 2nd Connector | Right Angle, RP-SMA Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 316 |
| Color | Copper |
| Features | Shielded |
| Frequency - Max | 6000 MHz |
| Length | 24 in |
| Operating Temperature (Max) | 90 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | RP-SMA |
