A6S-4101-PH(VNM)

Active

Omron Electronics Inc-EMC Div

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet

A6S-4101-PH(VNM)

Active

Omron Electronics Inc-EMC Div

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.04
		10	$ 1.66
		25	$ 1.52
		100	$ 1.34
		250	$ 1.23
	Digi-Reel®	1	$ 2.04
		10	$ 1.66
		25	$ 1.52
		100	$ 1.34
		250	$ 1.23
	Tape & Reel (TR)	900	$ 1.09
		1800	$ 1.02
		2700	$ 0.98
		4500	$ 0.93
		6300	$ 0.90
		9000	$ 0.86

Description

General part information

A6S Series

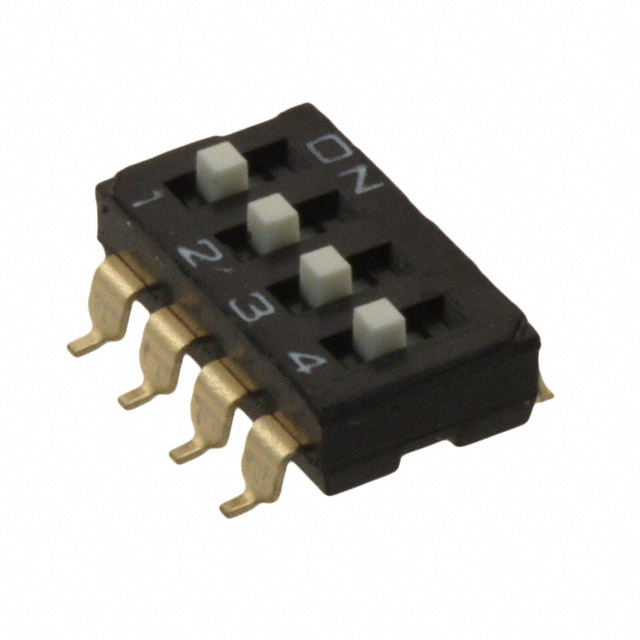

Dip Switch SPST 4 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC

Documents

Technical documentation and resources

How to Read Date Codes

Datasheet

Specification	A6S-4101-PH(VNM)	A6S Series

Actuator Level	Flush, Recessed	Flush, Recessed, Raised
Actuator Type	Slide (Standard)	Slide (Standard)
Circuit	SPST	SPST
Contact Finish	Gold	Gold
Current Rating (Amps)	25 mA	25 mA
Electrical Life	1000 Cycles	1000 Cycles
Features	-	Tape Seal
Height Above Board	3.7 mm	3.7 - 4.4 mm
Height Above Board	0.146 in	0.146 - 0.173 in
Length	0.437 in	0.437 - 0.937 in
Length	11.1 mm	11.1 - 23.8 mm
Length	-	0.137 - 0.737 in
Length	-	3.48 - 16.18 mm
Mechanical Life	1000 Cycles	1000 Cycles
Mounting Type	Surface Mount	Surface Mount
Number of Positions	4	1 - 9
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Pitch	Full	Full
Pitch [x]	0.1 in	0.1 in
Pitch [x]	2.54 mm	2.54 mm
Termination Style	Gull Wing	Gull Wing
Voltage Rating	24 VDC	24 VDC
Washable	False	True, False

Part
