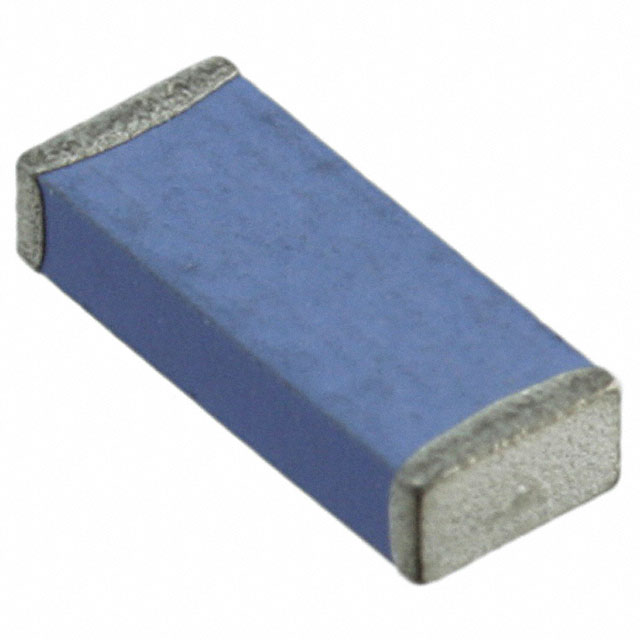

RFANT5220110A2T
ActiveWalsin Technology Corporation
RF ANT 2.4GHZ CHIP SOLDER SMD
RFANT5220110A2T
ActiveWalsin Technology Corporation
RF ANT 2.4GHZ CHIP SOLDER SMD
Description
General part information
RFANT5220110A2T
RF ANTENNA Bluetooth, WLAN Chip Solder Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | RFANT5220110A2T |
|---|---|
| Antenna Type | Chip |
| Applications | Bluetooth, WLAN |
| Frequency (Center/Band) | 2.4 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Max) | 2.5 GHz |
| Frequency Range (Min) | 2.4 GHz |
| Gain | 2 dBi |
| Height (Max) | 0.045 in |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| Power - Max | 3 VA |
| RF Family/Standard | WiFi, Bluetooth |
| Termination | Solder |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
