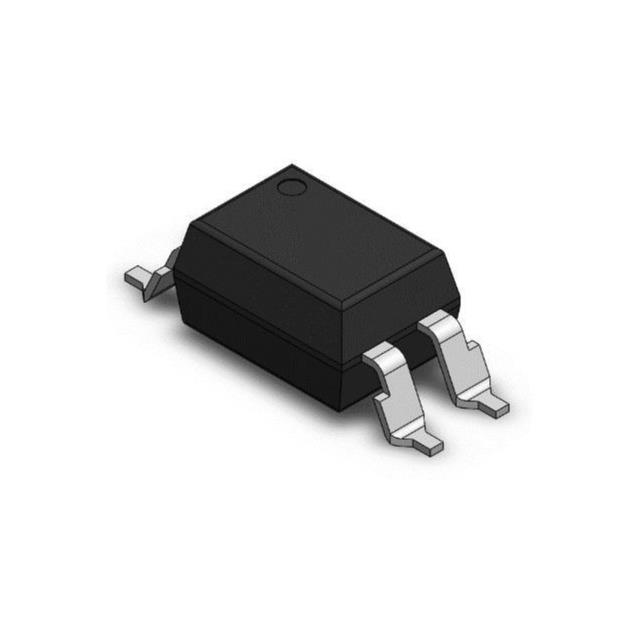

APC-817C1-SL

Active

American Bright Optoelectronics Corporation

OPTOISOLATOR 5KV 1CH TRANS 4SMD

Search across all available documentation for this part.

Active

American Bright Optoelectronics Corporation

OPTOISOLATOR 5KV 1CH TRANS 4SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	APC-817C1-SL	APC-817 Series

Current - DC Forward (If) (Max) [Max]	60 mA	60 mA
Current - Output / Channel	50 mA	50 mA
Current Transfer Ratio (Max)	400 %	260 - 400 %
Current Transfer Ratio (Max)	-	160 - 600 %
Current Transfer Ratio (Min) [Min]	200 %	80 - 300 %
Input Type	DC	DC
Mounting Type	Surface Mount	Surface Mount
Number of Channels	1	1
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-55 °C	-55 °C
Output Type	1.81 mOhm	1.81 mOhm
Package / Case	4-SMD, Gull Wing	4-SMD, Gull Wing
Rise / Fall Time (Typ) [custom]	3 µs	3 µs
Rise / Fall Time (Typ) [custom]	4 µs	4 µs
Supplier Device Package	4-SMD	4-SMD (SL Type), 4-SMD
Vce Saturation (Max)	200 mV	200 mV
Voltage - Forward (Vf) (Typ)	1.24 V	1.24 V
Voltage - Output (Max) [Max]	35 V	35 V

OPTOISOLATOR 5KV 1CH TRANS 4SMD

Part	Current Transfer Ratio (Min) [Min]	Supplier Device Package	Current Transfer Ratio (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Vce Saturation (Max)	Number of Channels	Voltage - Output (Max) [Max]	Current - DC Forward (If) (Max) [Max]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Voltage - Forward (Vf) (Typ)	Package / Case	Current - Output / Channel	Mounting Type	Input Type	Output Type	Current Transfer Ratio (Max) [Max]
American Bright Optoelectronics Corporation APC-817B1-SL	130 %	4-SMD (SL Type)	260 %	-55 °C	110 °C	200 mV	1	35 V	60 mA	3 µs	4 µs	1.24 V	4-SMD, Gull Wing	50 mA	Surface Mount	DC	1.81 mOhm
American Bright Optoelectronics Corporation APC-817A1-SL	80 %	4-SMD		-55 °C	110 °C	200 mV	1	35 V	60 mA	3 µs	4 µs	1.24 V	4-SMD, Gull Wing	50 mA	Surface Mount	DC	1.81 mOhm	160 %
American Bright Optoelectronics Corporation APC-817D1-SL	300 %	4-SMD		-55 °C	110 °C	200 mV	1	35 V	60 mA	3 µs	4 µs	1.24 V	4-SMD, Gull Wing	50 mA	Surface Mount	DC	1.81 mOhm	600 %
American Bright Optoelectronics Corporation APC-817C1-SL	200 %	4-SMD	400 %	-55 °C	110 °C	200 mV	1	35 V	60 mA	3 µs	4 µs	1.24 V	4-SMD, Gull Wing	50 mA	Surface Mount	DC	1.81 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD
