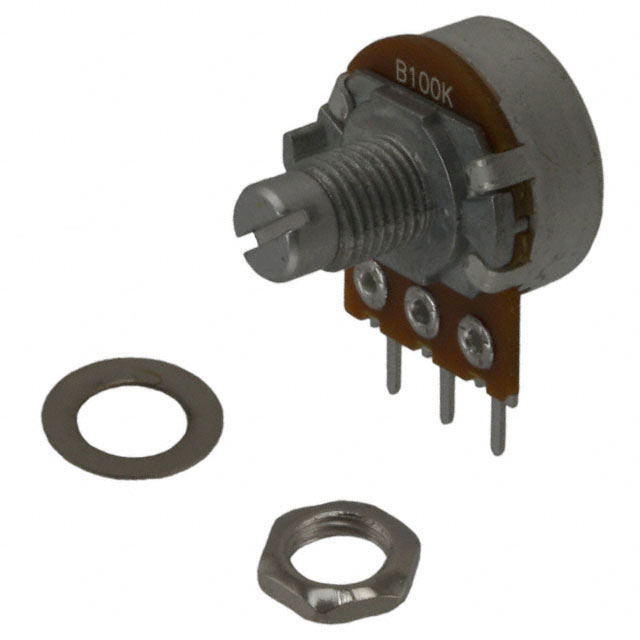

P160KN-0EB10B100K

Active

TT Electronics/BI

POT 100K OHM 1/5W PLASTIC LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

P160KN-0EB10B100K

Active

TT Electronics/BI

POT 100K OHM 1/5W PLASTIC LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.48
		10	$ 1.30
		25	$ 1.16
		40	$ 1.12
		80	$ 1.07
		230	$ 1.03
		440	$ 0.85
		1320	$ 0.81
		5280	$ 0.79

Description

General part information

P160K Series

100k Ohm 1 Gang Linear Panel Mount Potentiometer None 1.0 Kierros Conductive Plastic 0.2W, 1/5W PC Pins

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	P160KN-0EB10B100K	P160K Series

Actuator Diameter [diameter]	0.236 in	0.236 in
Actuator Diameter [diameter]	6 mm	6 mm
Actuator Length	-	0.591 - 0.787 in
Actuator Length	-	15 mm
Actuator Length	-	17 - 20 mm
Actuator Length [x]	10 mm	10 - 25 mm
Actuator Length [x]	0.394 in	0.394 - 0.984 in
Actuator Type	Slotted	Knurled and Slotted, Slotted, Flatted
Adjustment Type	Side Adjustment	Side Adjustment, User Defined, Rear Adjustment
Built in Switch	False	False
Built in Switch	-	Detent
Bushing Thread	0.75	0.75
Bushing Thread	M7	M7
Number of Gangs	1	1
Number of Turns	1	1
Power (Watts)	0.2 W	0.1 - 0.2 W
Power (Watts)	1/5	1/5
Power (Watts)	-	0.1 W
Resistance (Ohms)	100 kOhms	1 - 500 kOhms
Resistance (Ohms)	-	10k, 1M, 2k, 250k, 25k, 4.7k
Resistive Material	Conductive Plastic	Conductive Plastic
Rotation	300 ░	300 ░
Size - Body	Round	Round
Size - Body	-	0.374 in
Size - Body	-	9.5 mm
Size - Body [diameter]	17 mm	17 mm
Size - Body [diameter]	0.669 in	0.669 in
Taper	Linear	Linear, Reverse Logarithmic, Logarithmic
Termination Style	PC Pins	PC Pins, Solder Lug
Tolerance	20 %	20 %

P160K Series

POT 1K OHM 1/5W PLASTIC LINEAR

Part	Bushing Thread	Bushing Thread	Number of Turns	Resistive Material	Rotation	Actuator Type	Size - Body [diameter]	Size - Body	Size - Body [diameter]	Actuator Length [z]	Actuator Length	Resistance (Ohms)	Number of Gangs	Termination Style	Power (Watts)	Power (Watts)	Tolerance	Taper	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Adjustment Type	Resistance (Ohms)	Size - Body [z]	Size - Body [z]	Power (Watts)	Built in Switch	Actuator Length [z]	Actuator Length [x]	Actuator Length [x]
TT Electronics/BI P160KN-0QD15B1K	0.75	M7	1	Conductive Plastic	300 ░	Knurled and Slotted	17 mm	Round	0.669 in	0.591 in	15 mm	1 kOhms	1	PC Pins	0.2 W	1/5	20 %	Linear	0.236 in	6 mm	Side Adjustment
TT Electronics/BI P160KNP-0EC15B10K	0.75	M7	1	Conductive Plastic	300 ░	Slotted	17 mm	Round	0.669 in	0.591 in	15 mm		1	Solder Lug	0.2 W	1/5	20 %	Linear	0.236 in	6 mm	User Defined	10k
TT Electronics/BI P160KNP-0QC15B5K	0.75	M7	1	Conductive Plastic	300 ░	Knurled and Slotted	17 mm		0.669 in	0.591 in	15 mm	5 kOhms	1	Solder Lug	0.2 W	1/5	20 %	Linear	0.236 in	6 mm	User Defined		0.374 in	9.5 mm
TT Electronics/BI P160KN2-0QC15B1MEG	0.75	M7	1	Conductive Plastic	300 ░	Knurled and Slotted	17 mm	Round	0.669 in	0.591 in	15 mm		1	PC Pins	0.2 W	1/5	20 %	Linear	0.236 in	6 mm	Side Adjustment	1M
TT Electronics/BI P160KNP-0QC15C100K	0.75	M7	1	Conductive Plastic	300 ░	Knurled and Slotted	17 mm	Round	0.669 in	0.591 in	15 mm	100 kOhms	1	Solder Lug	0.1 W		20 %	Reverse Logarithmic	0.236 in	6 mm	User Defined				0.1 W
TT Electronics/BI P160KNP-0EC15C100K	0.75	M7	1	Conductive Plastic	300 ░	Slotted	17 mm	Round	0.669 in	0.591 in	15 mm	100 kOhms	1	Solder Lug	0.1 W		20 %	Reverse Logarithmic	0.236 in	6 mm	User Defined				0.1 W
TT Electronics/BI P160KNPD-4FC20B10K	0.75	M7	1	Conductive Plastic	300 ░	Flatted	17 mm	Round	0.669 in	0.787 in			1	PC Pins	0.2 W	1/5	20 %	Linear	0.236 in	6 mm	Rear Adjustment	10k				Detent	20 mm
TT Electronics/BI P160KNP-02D20B100K	0.75	M7	1	Conductive Plastic	300 ░	Knurled and Slotted				0.787 in		100 kOhms	1	Solder Lug	0.2 W	1/5	20 %	Linear	0.236 in	6 mm	User Defined						20 mm
TT Electronics/BI P160KNP-0EB10B100K	0.75	M7	1	Conductive Plastic	300 ░	Slotted	17 mm	Round	0.669 in			100 kOhms	1	Solder Lug	0.2 W	1/5	20 %	Linear	0.236 in	6 mm	User Defined							10 mm	0.394 in
TT Electronics/BI P160KN2-0QC17B10	0.75	M7	1	Conductive Plastic	300 ░	Knurled and Slotted	17 mm	Round	0.669 in	0.669 in		10 Ohms	1	PC Pins	0.2 W	1/5	20 %	Linear	0.236 in	6 mm	Side Adjustment						17 mm
